HW1B-V402R 22mm Emergency Stop Switch w/Enclosure 40mm Mushroom 2NC IDEC
by IDEC
SKU 489686
MPN: FB1W-HW1B-V402R-Y0
Availability:
10 in stock
Original price
£45.49
-
Original price
£45.49
Original price
£45.49
£45.49
-
£45.49
Current price
£45.49

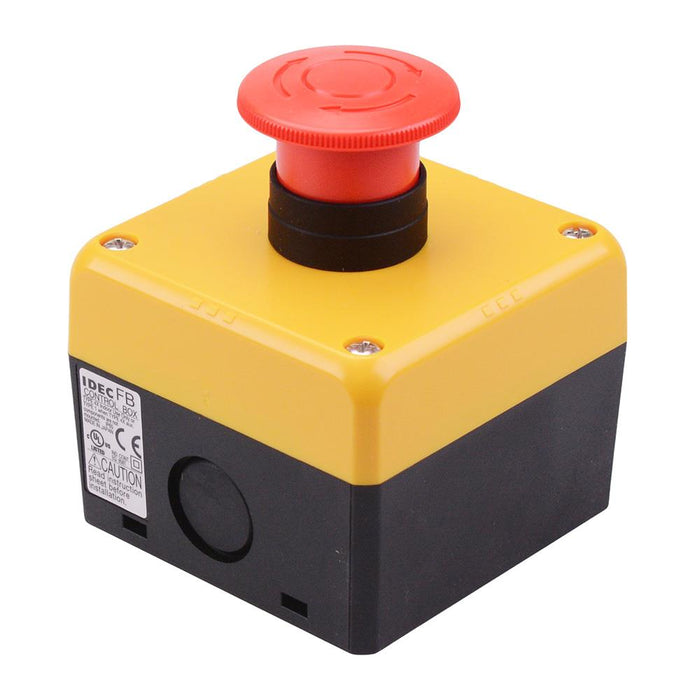

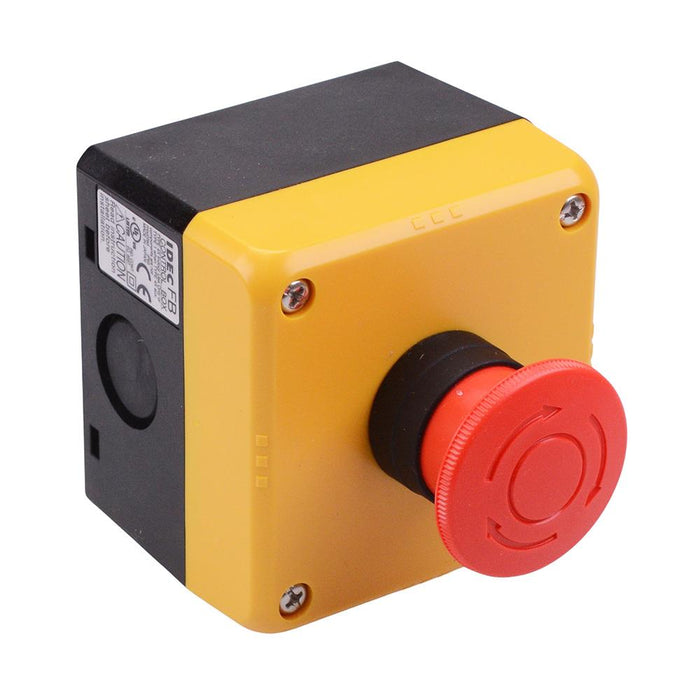

The FB1W-HW1B-V402R-Y0 is a 22mm E-stop switch by IDEC, housed in a yellow control station and compliant with SEMI S2 standards. The switch features a 40mm mushroom head and 2NC contacts with screw terminals. The HW series is CE, UL, CSA, CCC, and TUV approved, making these switches suitable for use in almost any part of the world.
Contacts: 2NC Rated current: 10A Rated insulation voltage: 600V Panel cut-out: 22.3mm Panel thickness: 0.8-6mm Panel depth: 23.9mm Head diameter: 40mm Screw terminals Control station dimensions: 76 x 76 x 59.5mm CE mark, UL, CSA, CCC (Chinese), and TUV approvals
Specification
Actuation | Twist Release |
Back Order Lead Time | 10 Days |
Colour | Red |
Contact Configuration | 2NC |
Contact Material | Silver |
Current Rating | 10A |
Head Type | Mushroom |
Illuminated | No |
MOQ | 1 |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -25°C to +50°C |
Panel Cut Out | 22.3mm |
Product Series | HW |
Protection Level | IP65 |
Terminal Type | Screw |
Voltage Rating | 600V |
