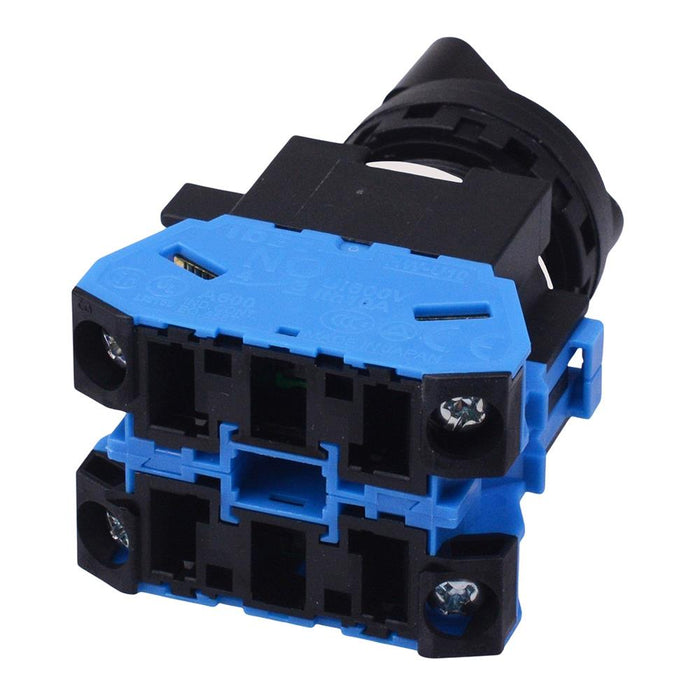

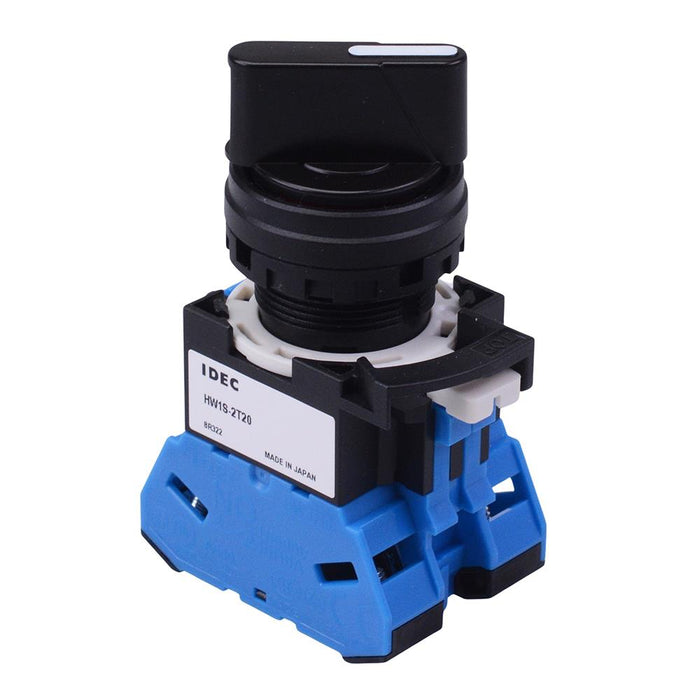

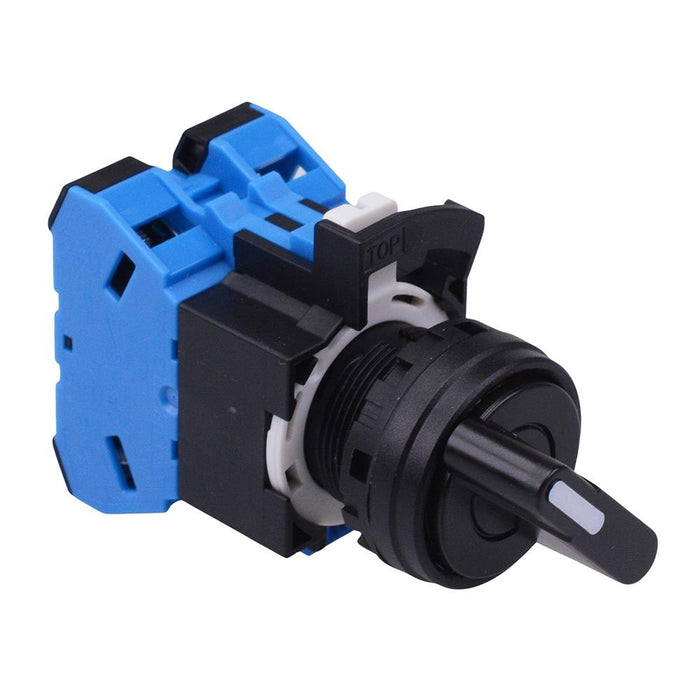

HW1S-2TF20 22mm 2 Position Maintained Selector Switch 2NO IDEC
by IDEC
SKU 493190
MPN: HW1S-2TF20
Availability:
10 in stock
Original price
£14.47
-
Original price
£14.47
Original price
£14.47
£14.47
-
£14.47
Current price
£14.47
The HW1S-2T20 is a 2 position selector switch from the HW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is easy to assemble. Suitable for standard 22mm panel cut-outs and meets worldwide approvals for most industrial applications.
2NO contacts 2 positions Switches both contacts in the right position Voltage rating: 600V Current rating: 10A 22mm panel cut-out IP65 protection rating Interchangeable switch components
Specification
| Actuation | Maintained |
| Back Order Lead Time | 126 Days |
| Contact Configuration | 2NO |
| Contact Material | Gold Plated Silver |
| Contact Rating | 10A 600V |
| Current Rating | 10A |
| Electrical Life | 250,000 Cycles |
| Head Type | Selector |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +50°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | HW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
