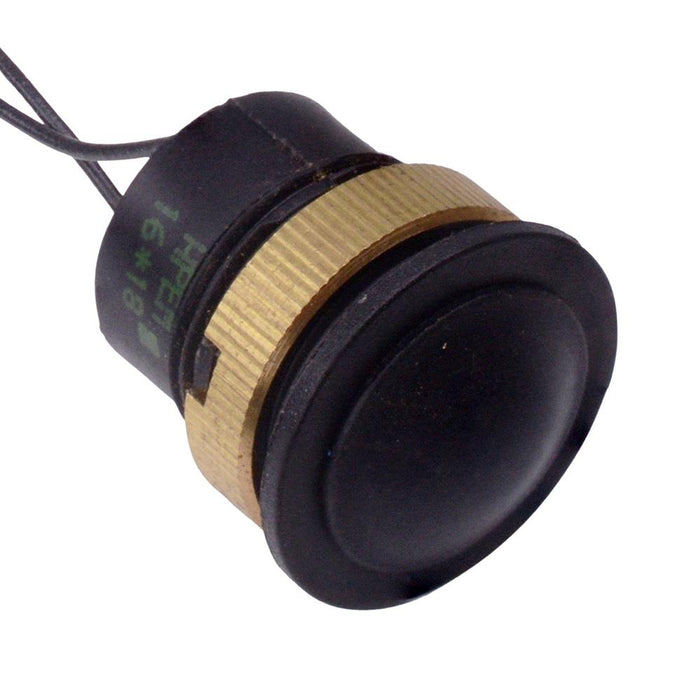

IAR3F1200X1223-07 APEM Black Low Profile 16mm Push Button Switch SPST-NO IP67

SKU 487359

MPN: IAR3F1200X1223-07

Back Order Availability: 10 Days

109 in stock, ready to be shipped
Original price £16.93 - Original price £16.93
Original price
£16.93 Inc VAT
£16.93 - £16.93
Current price £16.93 Inc VAT
The IAR3F1200X1223-07 switch consists of a polyurethane membrane which depresses when the switch is actuated. The membrane is press fitted onto the bushing, providing an IP67 front of panel seal and ensuring high resistance to frost and external contaminants. The actuator material provides a soft feel and allows easy operation even with gloved hands. The low profile design allows easy actuation when the switches are matrix mounted.

  • Momentary operation
  • SPST-NO contacts
  • 16mm bushing
  • Sealed to IP67
  • Panel cut-out: 16.2mm
  • 500mm flying leads
  • Rating: 2A 24VDC
  • Panel thickness: 7mm max
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Black
    Contact configuration SPST
    Contact material Gold Plated Silver
    Contact rating 2A 24VDC
    Current rating 2A
    Illuminated No
    Material Thermoplastic
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating force 7N
    Operating temperature -20°C to +65°C
    Panel cut out 16.2mm
    Panel thickness 7mm
    Product series IA
    Protection level IP67
    Switch operation Off-(On)
    Terminal type Flying Leads
    Voltage rating 24VDC
