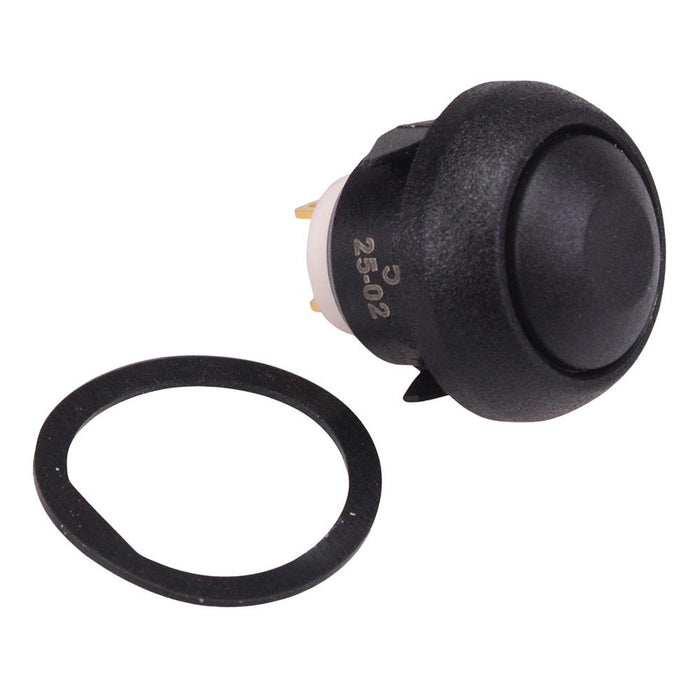

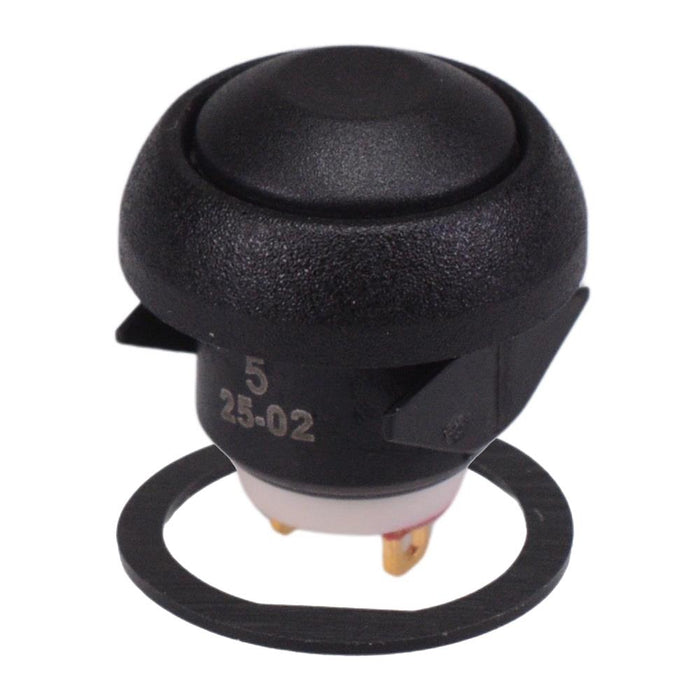

IBR3SAD2 Black Momentary Snap-In 12mm Push Button Switch SPST IP67
by APEM
SKU 491645
MPN: IBR3SAD2
Availability:
100 in stock
Original price
£8.04
-
Original price
£8.04
Original price
£8.04
£9.84
£9.84
-
£9.84
Current price
£9.84
The IBR3SAD2 is a black actuator momentary push button switch with tactile feedback when pressed and a compact lightweight package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.
Momentary operation SPST contacts 12mm snap-in bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 400mA 32VAC - 100mA 48VDC Panel thickness: 0.8-1.8mm Dimensions: 20 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 0.4A 32VAC, 0.1A 48VDC |
| Current Rating | 0.4A @ 32VAC |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 4N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 0.8-1.8mm |
| Product Series | IB |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 32VAC / 48VDC |
