ICR3FAD2101 APEM Chrome Momentary 12mm Push Button Switch Prewired SPST IP67
by APEM
SKU 487723
MPN: ICR3FAD2101
Availability:
15 in stock
Original price
£16.39
-
Original price
£16.39
Original price
£16.39
£16.39
-
£16.39
Current price
£16.39

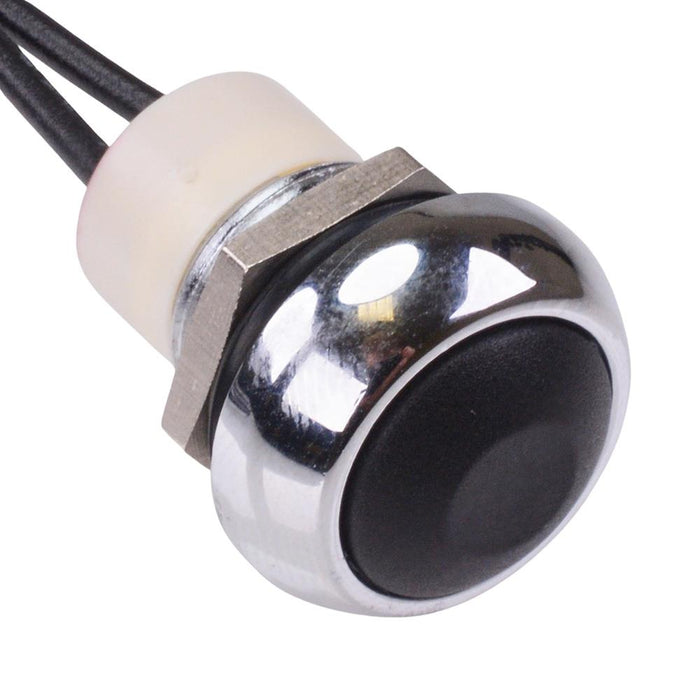

The ICR3FAD2101 is a chrome bezel momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features 500mm flying leads and SPST contacts, suitable for a wide range of applications.
Momentary operation SPST contacts 12mm chrome bushing Sealed to IP67 Panel cut-out: 13.6mm 500mm flying leads Rating: 5A 28VDC Panel thickness: 1.5-4mm Dimensions: 21 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current Rating | 5A 28VDC |
| Electrical Life | 500,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Thermoplastic |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 4N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | IC |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 48VAC/DC |
