IDEC 22mm 2 Position Maintained Key Switch 2NO-1NC IP65 YW1K-2AE21

by IDEC
SKU 931896

MPN: YW1K-2AE21

Availability:
Only 5 left!
Original price £25.57 - Original price £25.57
Original price
£25.57 Inc VAT
£25.57 - £25.57
Current price £25.57 Inc VAT

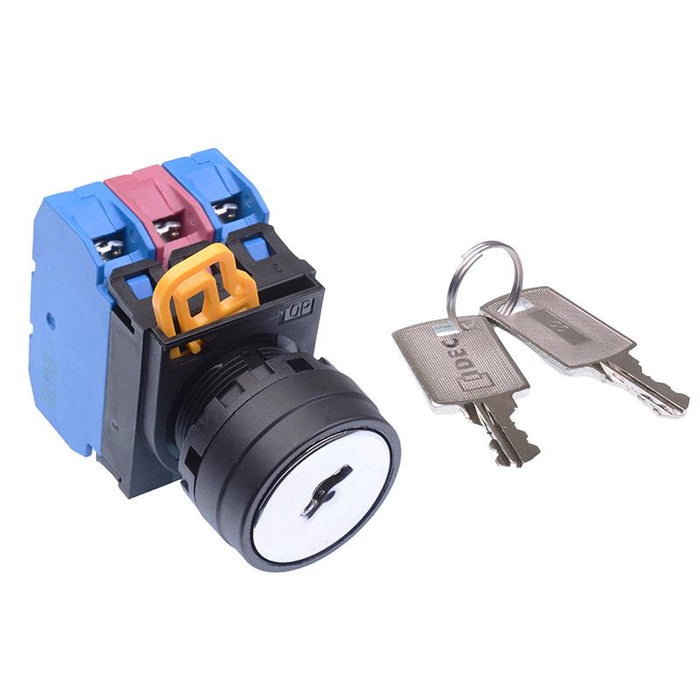

The YW1K-2AE21 is a 2 position maintained key switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 2NO-1NC contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • IP65 protection rating
  • Comes with 2 keys
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 83.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Maintained
    Back order lead time 10 Days
    Contact configuration 2NO-1NC
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Key
    Illuminated No
    Illumination colour Green
    Key index angle 90°
    Key withdrawal position 1 & 2
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 600V
    Request a quote
