YW1S-2E03 22mm 2 Position Maintained Selector Switch 3NC IP65 IDEC
by IDEC
SKU 931873
MPN: YW1S-2E03
Availability:
49 in stock
Original price
£15.61
-
Original price
£15.61
Original price
£15.61
£15.61
-
£15.61
Current price
£15.61

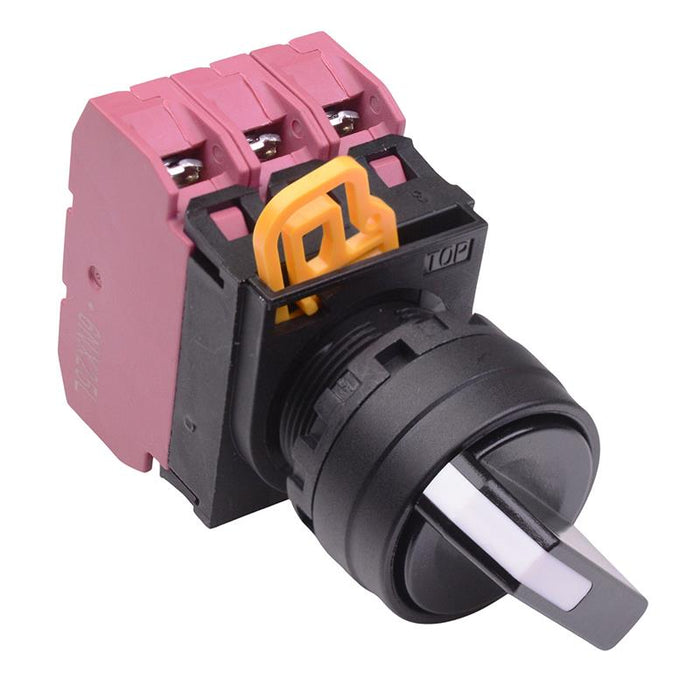

The YW1S-2E03 is a 2 position maintained selector switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
3NC contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 27.6mm knob diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 69.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 3NC |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Selector |
| Illuminated | No |
| Illumination Colour | Red |
| Key Index Angle | 90° |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Rated Thermal Current | 10A |
| Terminal Type | Screw |
| Voltage Rating | 600V |
