YW1K-3AE20 22mm 3 Position Maintained Key Switch 2NO IP65 IDEC
by IDEC
SKU 931898
MPN: YW1K-3AE20
Availability:
9 in stock
Original price
£22.30
-
Original price
£22.30
Original price
£22.30
£22.30
-
£22.30
Current price
£22.30

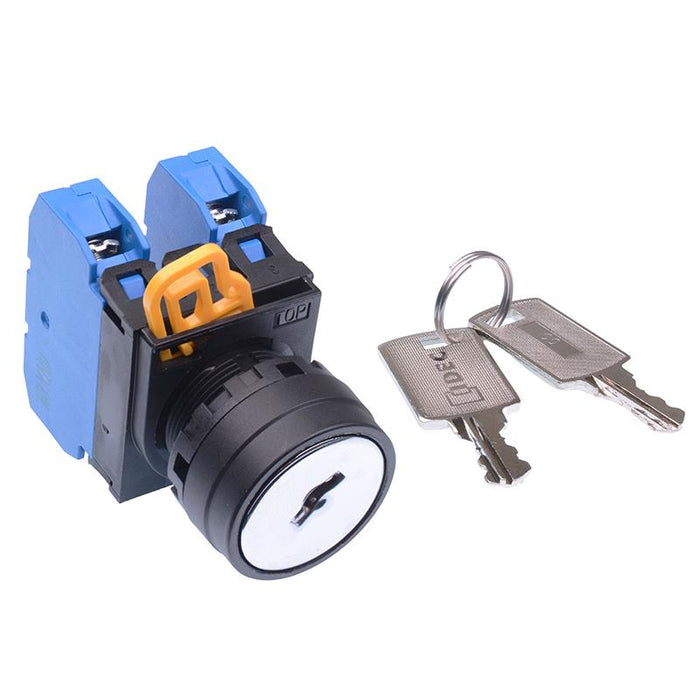

The YW1K-3AE20 is a 3 position maintained key switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
2NO contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out IP65 protection rating Comes with 2 keys Self cleaning contacts Interchangeable switch components Dimensions: 83.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Maintained |
Back Order Lead Time | 10 Days |
Contact Configuration | 2NO |
Contact Rating | 2A 380V, 6A 240V |
Current Rating | 10A |
Electrical Life | 100,000 Cycles |
Head Type | Key |
Illuminated | No |
Illumination Colour | Amber |
Key Index Angle | 45° |
Key Withdrawal Position | 1 & 2 |
Mounting Style | Panel |
Number of Positions | 3 |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 22.3mm |
Panel Thickness | 0.8-6mm |
Product Series | YW |
Protection Level | IP65 |
Rated Thermal Current | 10A |
Terminal Type | Screw |
Voltage Rating | 600V |
