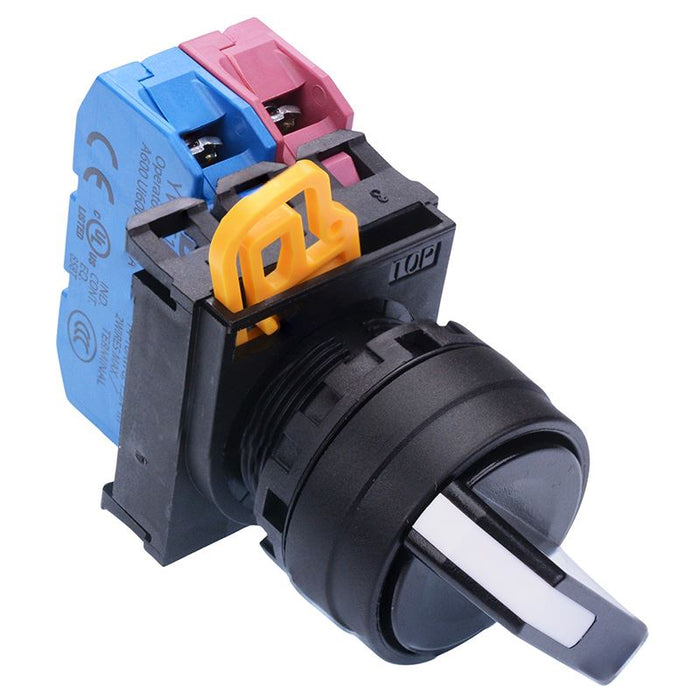

IDEC 22mm 3 Position Maintained Selector Switch 1NO-1NC IP65 YW1S-3E11N4

by IDEC
SKU 931884

MPN: YW1S-3E11N4

Availability:
Out of stock
Sold out
Original price £11.16 - Original price £11.16
Original price
£11.16 Inc VAT
£11.16 - £11.16
Current price £11.16 Inc VAT
The YW1S-3E11N4 is a 3 position maintained selector switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 1NO-1NC contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 27.6mm knob diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 69.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Maintained
    Back order lead time 10 Days
    Contact configuration 1NO-1NC
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Selector
    Illuminated No
    Illumination colour Green
    Key index angle 45°
    Mounting style Panel
    Number of positions 3
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 600V
