YW1B-V4E01R 22mm Emergency Stop Switch SPST 1NC IDEC
by IDEC
SKU 485709
MPN: YW1B-V4E01R
Availability:
174 in stock
Original price
£9.16
-
Original price
£9.16
Original price
£9.16
£10.39
£10.39
-
£10.39
Current price
£10.39

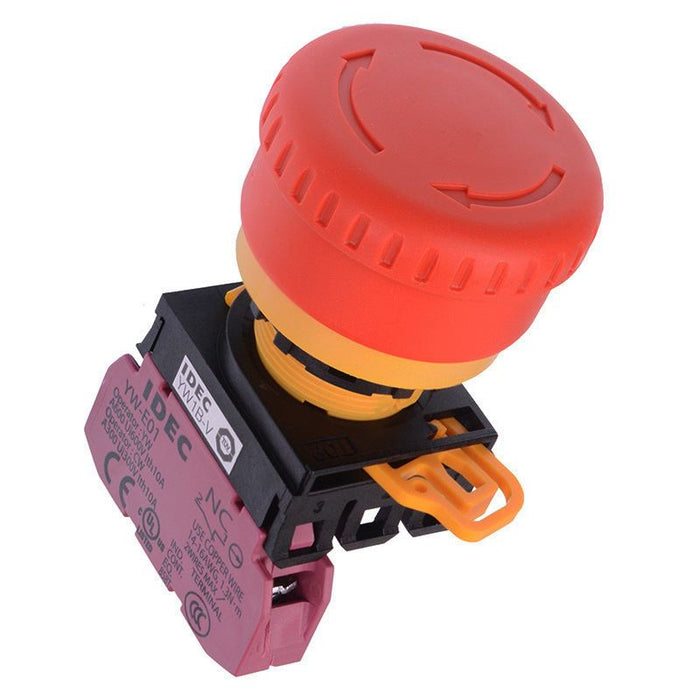

The YW1B-V4E01R is a 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 1NC contacts. The switch features an innovative space saving design and can be reset by either pulling or turning. The switch is suitable for a wide range of safety applications requiring a high quality solution.
1NC contacts 22mm panel hole diameter IP65 protection level Screw terminals Contact rating: 10A 120V, 6A 240V, 2A 380V
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | 1NC |
| Contact Rating | 10A 120V, 6A 240V, 2A 380V |
| Current Rating | 10A |
| Head Type | Mushroom |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
