IDEC 22mm Emergency Stop Switch Control Box 1NO-2NC YB1W-YW1B-V4E12R-Y0
by IDEC
SKU 491221
MPN: YB1W-YW1B-V4E12R-Y0
Availability:
20 in stock
Original price
£27.90
-
Original price
£27.90
Original price
£27.90
£29.30
£29.30
-
£29.30
Current price
£29.30

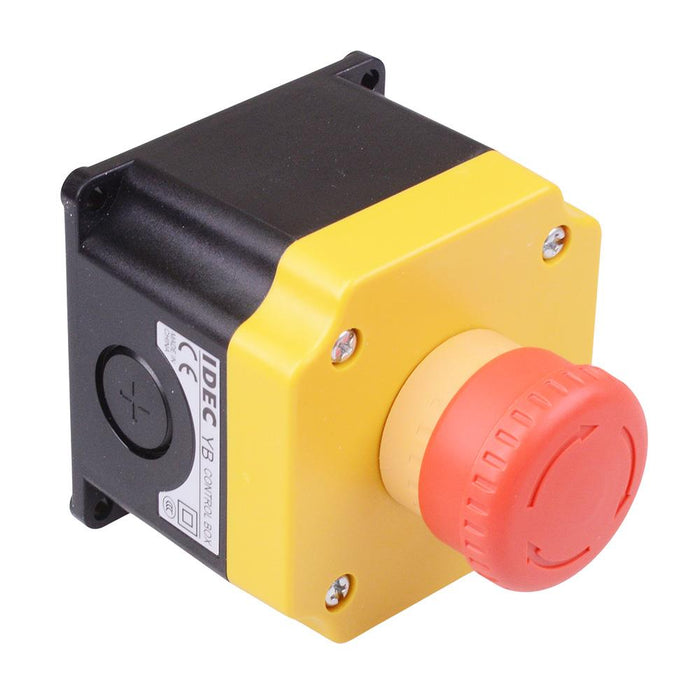

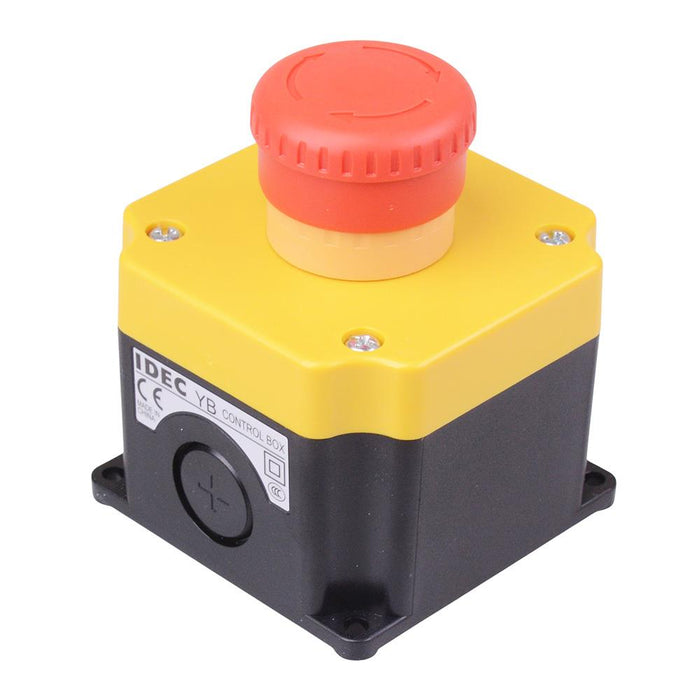

The YB1W-YW1B-V4E12R-Y0 is a 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 1NO-2NC contacts. The switch features can be reset by either pulling or turning and comes complete with yellow/black control box. The switch is suitable for a wide range of safety applications requiring a high quality solution.
1NO-2NC contacts 22.3mm panel hole diameter IP65 protection level Screw terminals 40mm mushroom head Contact rating: 10A 120V, 6A 240V, 2A 380V Box dimensions: 76 x 76 x 59.5mm (length x width x height)
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 7 Days |
| Colour | Red |
| Contact Configuration | 1NO-2NC |
| Contact Rating | 10A 120V, 6A 240V, 2A 380V |
| Current Rating | 10A |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
