IDEC 22mm Emergency Stop Switch Control Box 3NC YB1W-YW1B-V4E03R-Y0

SKU 486074


28 in stock
Original price £24.28 - Original price £24.28
Original price
£24.28 Inc VAT
£24.28 - £24.28
Current price £24.28 Inc VAT

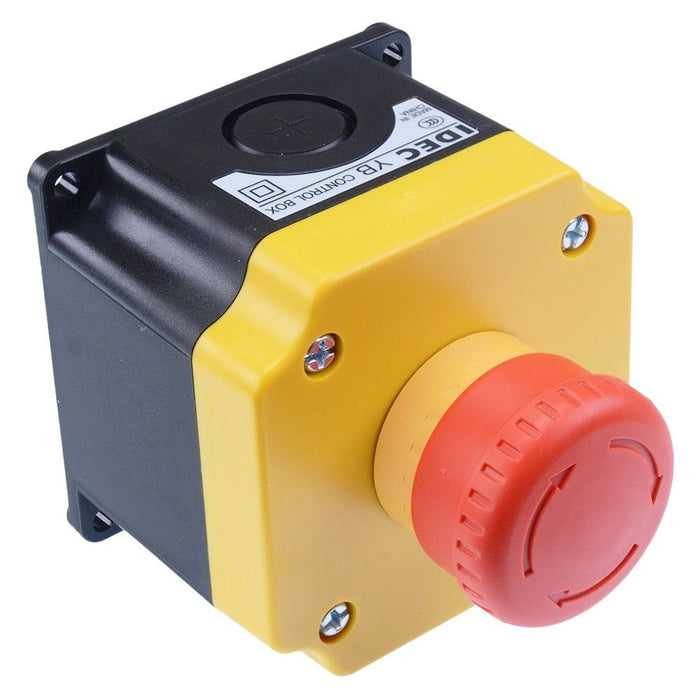

The YB1W-YW1B-V4E03R-Y0 is a 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 3NC contacts. The switch features can be reset by either pulling or turning and comes complete with yellow/black control box. The switch is suitable for a wide range of safety applications requiring a high quality solution.

  • 3NC contacts
  • 22mm panel hole diameter
  • IP65 protection level
  • Screw terminals
  • 40mm mushroom head
  • Contact rating: 10A 120V, 6A 240V, 2A 380V
  • Box dimensions: 76 x 76 x 59.5mm (length x width x height)
  • Specification
    Actuation Twist Release
    Back order lead time 10 Days
    Colour Red
    Contact configuration 3NC
    Contact rating 10A 120V, 6A 240V, 2A 380V
    Current rating 10A
    Illuminated No
    Number of positions 2
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Terminal type Screw
    Voltage rating 600V
