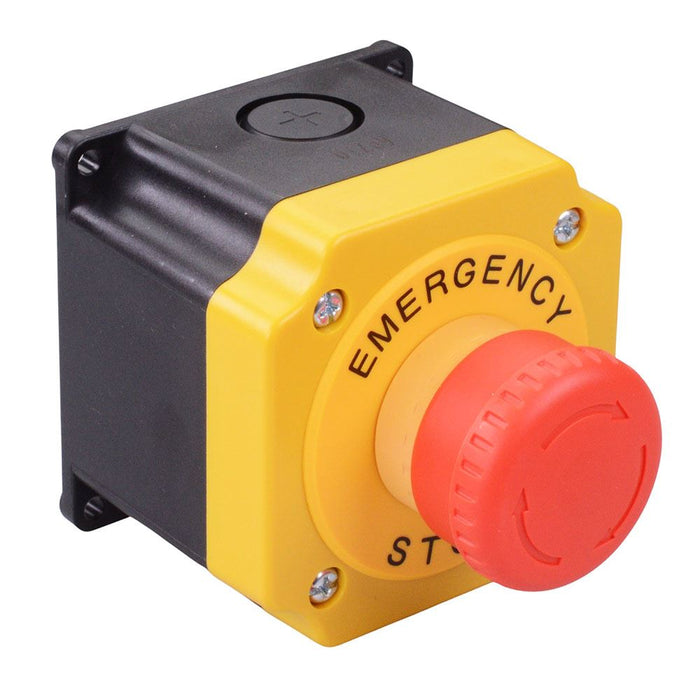

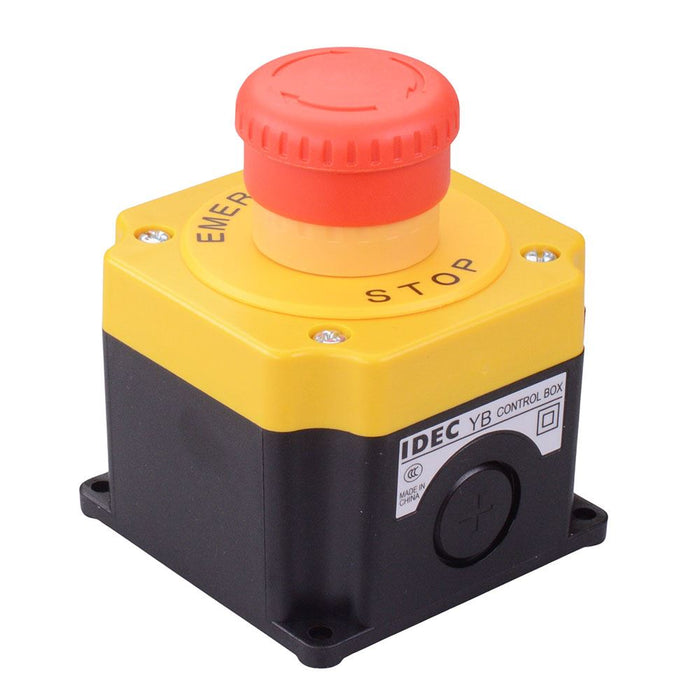

IDEC 22mm Emergency Stop Switch Control Box with Nameplate 2NO-1NC YB1W-YW1B-V4E21R-Y1
by IDEC
SKU 486076
MPN: YB1W-YW1B-V4E21R-Y1
Availability:
Only 4 left!
Original price
£27.36
-
Original price
£27.36
Original price
£27.36
Inc VAT
£27.36
-
£27.36
Current price
£27.36
Inc VAT
The YB1W-YW1B-V4E21R-Y1 is a 22mm E-stop switch manufactured by IDEC, featuring 2NC contacts and nameplate. The switch features can be reset by either pulling or turning and comes complete with yellow/black control box. The switch is suitable for a wide range of safety applications requiring a high quality solution.
2NC contacts 22mm panel hole diameter IP65 protection level Screw terminals 40mm mushroom head Contact rating: 10A 120V, 6A 240V, 2A 380V Box dimensions: 76 x 76 x 59.5mm (length x width x height)
Specification
| Actuation | Twist Release |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | 2NO-1NC |
| Contact rating | 10A 120V, 6A 240V, 2A 380V |
| Current rating | 10A |
| Illuminated | No |
| Number of positions | 2 |
| Panel cut out | 22.3mm |
| Panel thickness | 0.8-6mm |
| Product series | YW |
| Protection level | IP65 |
| Terminal type | Screw |
| Voltage rating | 600V |
