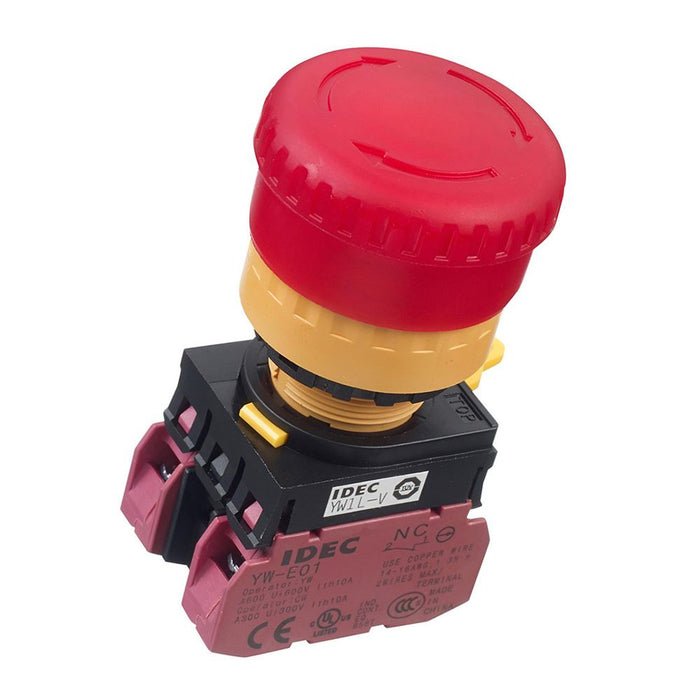

IDEC 24V illuminated 22mm Emergency Stop Switch 2NC YW1L-V4E02Q4R

by IDEC
SKU 485712

MPN: YW1L-V4E02Q4R

Availability:
28 in stock
Original price £16.51 - Original price £16.51
Original price
£16.51 Inc VAT
£16.51 - £16.51
Current price £16.51 Inc VAT
The YW1L-V4E02Q4R is a 24V illuminated 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 2NC contacts. The switch features an innovative space saving design and can be reset by either pulling or turning. The switch is suitable for a wide range of safety applications requiring a high quality solution.

  • 2NC contacts
  • 22mm panel hole diameter
  • IP65 protection level
  • 24V AC/DC operating voltage
  • Screw terminals
  • 40mm mushroom head
  • Contact rating: 10A 120V, 6A 240V, 2A 380V
  • Specification
    Actuation Twist Release
    Back order lead time 10 Days
    Colour Red
    Contact configuration 2NC
    Contact rating 10A 120V, 6A 240V, 2A 380V
    Current rating 10A
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 24VAC/DC
    Mounting style Panel
    Number of positions 2
    Panel cut out 22.3mm
    Product series YW
    Protection level IP65
    Terminal type Screw
    Voltage rating 600V
