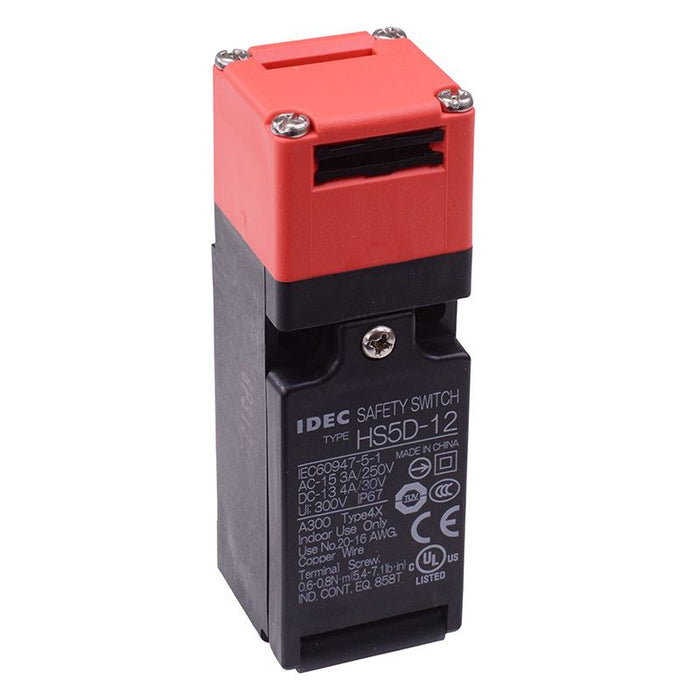

IDEC 2NC/1NO Safety Interlock Switch Standard Head HS5D-12RNP

The HS5D-12RNP is a safety interlock switch head manufactured from plastic featuring 2NC and 1NO contacts. The switch features a compact package and easy wiring utilising the screw terminals. The head removal detection turns OFF the main circuit when the head is removed, such as when the head is rotated, providing enhanced safety.

1NO-2NC contacts

M3 terminal screws

Gold plated contacts suitable for small loads

Interchangeable actuators

Head orientation can be rotated, allowing 8 different actuator entries

Double insulation structure eliminates the need for grounding

IP67 protection level

PG13.5 cable gland connection

Maximum current: 10A

Maximum voltage: 250VAC, 30VDC

Body dimensions: 91 x 30 x 30mm (height x width x depth)
