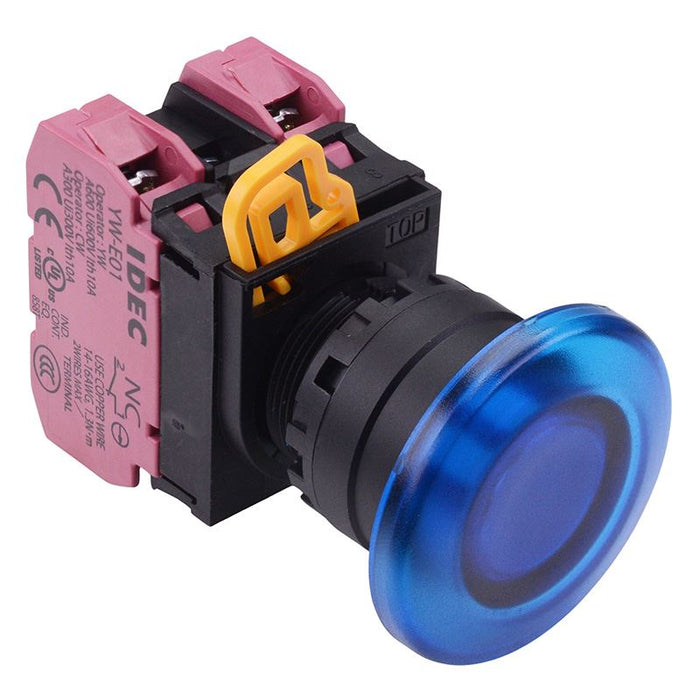

IDEC Blue 12V illuminated 22mm Mushroom Maintained Push Button Switch 2NC IP65 YW1L-A4E02Q3S
by IDEC
SKU 931809
MPN: YW1L-A4E02Q3S
Availability:
Out of stock
Sold out
Original price
£21.12
-
Original price
£21.12
Original price
£21.12
Inc VAT
£21.12
-
£21.12
Current price
£21.12
Inc VAT
The YW1B-A4E02Q3S is an illuminated blue maintained push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
2NC contacts 12V LED illumination Voltage rating: 600V Current rating: 10A 22mm panel cut-out 40mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Maintained |
Back Order Lead Time | 10 Days |
Colour | Blue |
Contact Configuration | 2NC |
Contact Rating | 2A 380V, 6A 240V |
Current Rating | 10A |
Electrical Life | 100,000 Cycles |
Head Type | Mushroom |
Illuminated | Yes |
Illumination Colour | Red |
Illumination Voltage | 12V |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 22.3mm |
Panel Thickness | 0.8-6mm |
Product Series | YW |
Protection Level | IP65 |
Rated Thermal Current | 10A |
Terminal Type | Screw |
Voltage Rating | 600V |
