IDEC Blue 24V LED Panel Mount Indicator YW1P-1BUQ4S

SKU 485703


9 in stock
Original price £7.06 - Original price £7.06
Original price
£7.06 Inc VAT
£7.06 - £7.06
Current price £7.06 Inc VAT

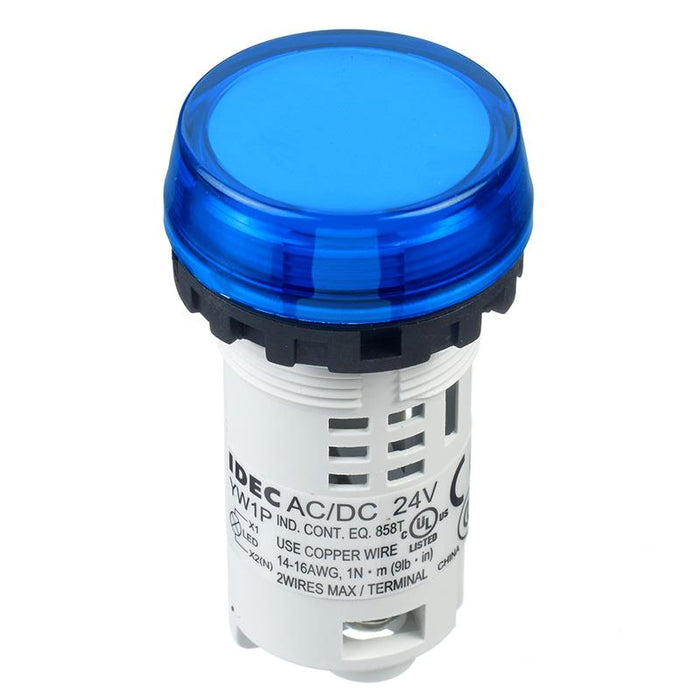

The YW1P-1BUQ4S is a unibody blue 24V LED panel mount indicator from the YW range by IDEC. The indicator features a flush head and IP65 protection level, suitable for use in harsh wearing industrial applications. The innovative unibody design eliminates the need for additional contact blocks or light modules.

  • LED Lamp
  • Screw terminals
  • Voltage: 24V AC/DC
  • Panel cut-out diameter: 22mm
  • Forward current: 20mA
  • Panel thickness: 0.8-6mm
  • Dimensions: 52 x 29.8mm (height x diameter)
  • Specification
    Back order lead time 10 Days
    Colour Blue
    Diameter 29.8mm
    Forward current 20mA
    Lamp type LED
    Length 52mm
    Mounting type Panel Mount
    Operating temperature -20°C to +55°C
    Panel cut out 22mm
    Panel thickness 6mm
    Protection level IP65
    Voltage rating 24VAC/DC
