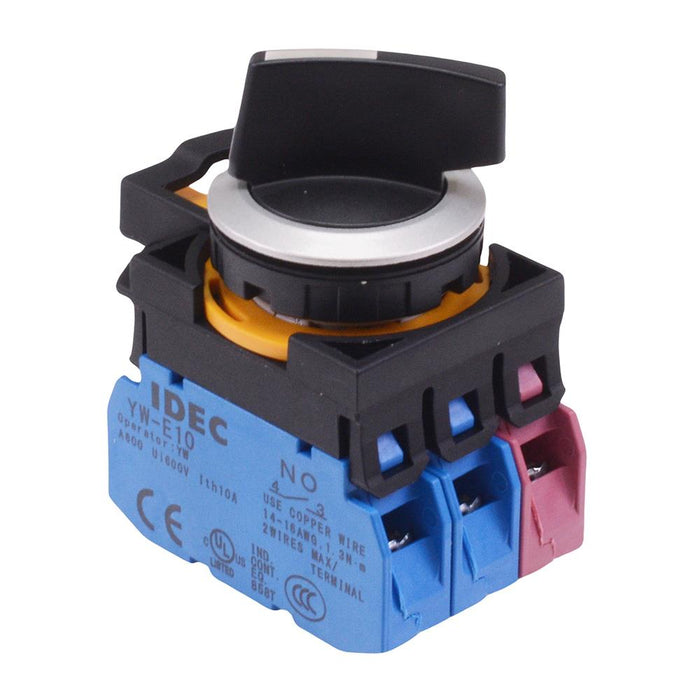

CW4S-3E21 3 Position Metallic Selector Switch2NO-1NC IP65 IDEC

by IDEC
SKU 934230

MPN: CW4S-3E21

Availability:
8 in stock
Original price £29.30 - Original price £29.30
Original price
£29.30
£29.30 - £29.30
Current price £29.30
The CW4S-3E21 is an industrial selector switch featuring a metallic sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

  • 3 positions
  • 2NO-1NC contacts
  • Screw contact blocks
  • Maintained operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • Specification
    Actuation Maintained
    Back Order Lead Time 10 Days
    Contact Configuration 2NO-1NC
    Contact Rating 8A 24VDC, 10A 120VAC, 6A 240VAC
    Current Rating 10A
    Head Type Selector
    Illuminated No
    Mounting Style Panel
    Number of Positions 3
    Operating Temperature -25°C to +60°C
    Panel Cut Out 22.3mm
    Product Series CW
    Protection Level IP65
    Rated Thermal Current 10A
    Terminal Type Screw
    Voltage Rating 300V
