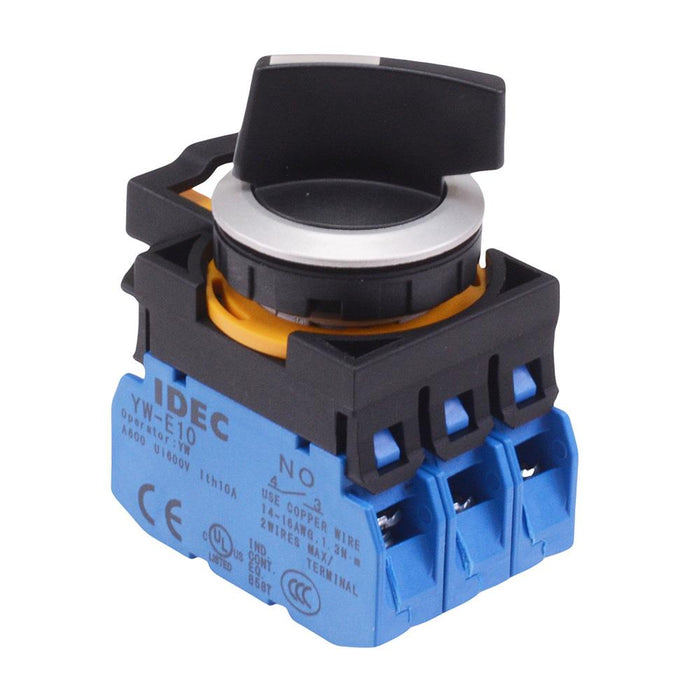

CW4S-3E30 3 Position Metallic Selector Switch 3NO IP65 IDEC

by IDEC
SKU 934232

MPN: CW4S-3E30

Availability:
9 in stock
Original price £30.26 - Original price £30.26
Original price
£30.26 Inc VAT
£30.26 - £30.26
Current price £30.26 Inc VAT
The CW4S-3E30 is an industrial selector switch featuring a metallic sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

  • 3 positions
  • 3NO contacts
  • Screw contact blocks
  • Maintained operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • Specification
    Actuation Maintained
    Back order lead time 10 Days
    Contact configuration 3NO
    Contact rating 8A 24VDC, 10A 120VAC, 6A 240VAC
    Current rating 10A
    Head type Selector
    Illuminated No
    Mounting style Panel
    Number of positions 3
    Operating temperature -25°C to +60°C
    Panel cut out 22.3mm
    Product series CW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 300V
