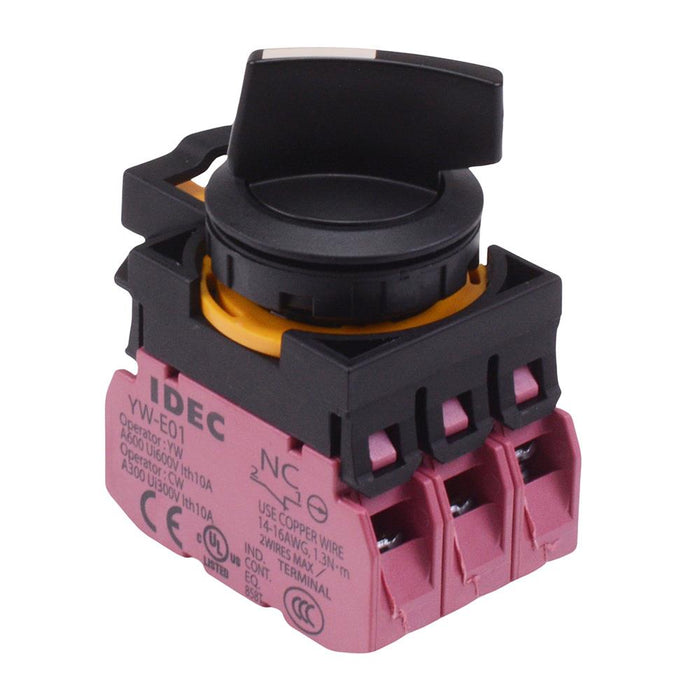

CW1S-3E03 3 Position Selector Switch 3NC IP65 IDEC
by IDEC
SKU 934220
MPN: CW1S-3E03
Availability:
Only 3 left!
Original price
£23.27
-
Original price
£23.27
Original price
£23.27
Inc VAT
£23.27
-
£23.27
Current price
£23.27
Inc VAT
The CW1S-3E03 is an industrial selector switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.
3 positions 3NC contacts Screw contact blocks Maintained operation 22.3mm mounting hole IP65 protection level 2.5mm thick bezel 39.9mm depth behind the panel Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
Specification
Actuation | Maintained |
Back order lead time | 10 Days |
Contact configuration | 3NC |
Contact rating | 8A 24VDC, 10A 120VAC, 6A 240VAC |
Current rating | 10A |
Head type | Selector |
Illuminated | No |
Mounting style | Panel |
Number of positions | 3 |
Operating temperature | -25°C to +60°C |
Panel cut out | 22.3mm |
Product series | CW |
Protection level | IP65 |
Rated thermal current | 10A |
Terminal type | Screw |
Voltage rating | 300V |
