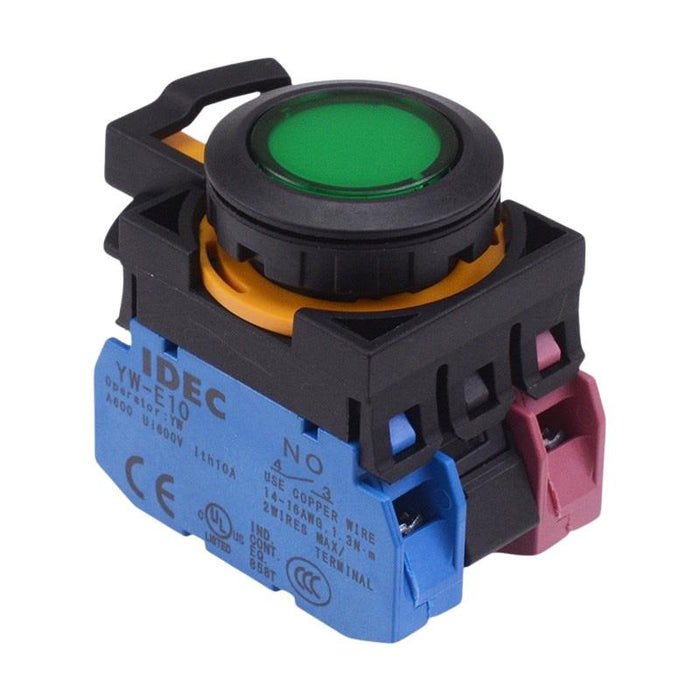

IDEC CW Series Green 12V illuminated Momentary Flush Push Button Switch 1NO-1NC IP65
by IDEC
SKU 933676
MPN: IDEC
Back Order Availability:
Availability:
7 in stock, ready to be shipped
Original price
£27.50
-
Original price
£27.50
Original price
£27.50
Inc VAT
£27.50
-
£27.50
Current price
£27.50
Inc VAT
The CW1L-M1E11Q3G is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.
Green button 12V LED illumination 1NO-1NC contacts Screw contact blocks Momentary operation 22.3mm mounting hole IP65 protection level 2.5mm thick bezel 39.9mm depth behind the panel Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
Specification
| Actuation | Momentary |
| Colour | Green |
| Contact configuration | 1NO-1NC |
| Contact rating | 8A 24VDC, 10A 120VAC, 6A 240VAC |
| Current rating | 10A |
| Head type | Flush |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 12V |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +55°C |
| Panel cut out | 22.3mm |
| Product series | CW |
| Protection level | IP65 |
| Rated thermal current | 10A |
| Terminal type | Screw |
| Voltage rating | 300V |
