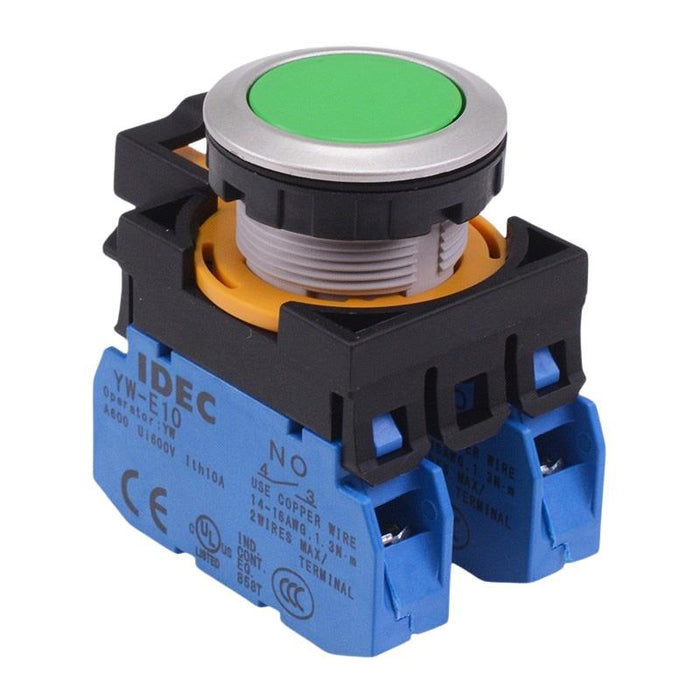

CW4B-A1E20G Green Metallic Maintained Push Button Switch 2NO IP65 IDEC
by IDEC
SKU 934152
MPN: CW4B-A1E20G
Availability:
8 in stock
Original price
£29.95
-
Original price
£29.95
Original price
£29.95
£29.95
-
£29.95
Current price
£29.95
The CW4B-A1E20G is a flush mount industrial push button switch featuring a metallic sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.
Green button 2NO contacts Screw contact blocks Maintained operation 22.3mm mounting hole IP65 protection level 2.5mm thick bezel 39.9mm depth behind the panel Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
Specification
Actuation | Maintained |
Back Order Lead Time | 10 Days |
Colour | Green |
Contact Configuration | 2NO |
Contact Rating | 8A 24VDC, 10A 120VAC, 6A 240VAC |
Current Rating | 10A |
Head Type | Flush |
Illuminated | No |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -25°C to +60°C |
Panel Cut Out | 22.3mm |
Product Series | CW |
Protection Level | IP65 |
Rated Thermal Current | 10A |
Terminal Type | Screw |
Voltage Rating | 300V |
