CW4L-A1E10Q4R Red 24V illuminated Maintained Push Button Switch 1NO IP65 IDEC

by IDEC
SKU 933930

MPN: CW4L-A1E10Q4R

Availability:
10 in stock
Original price £38.43 - Original price £38.43
Original price
£38.43 Inc VAT
£38.43 - £38.43
Current price £38.43 Inc VAT

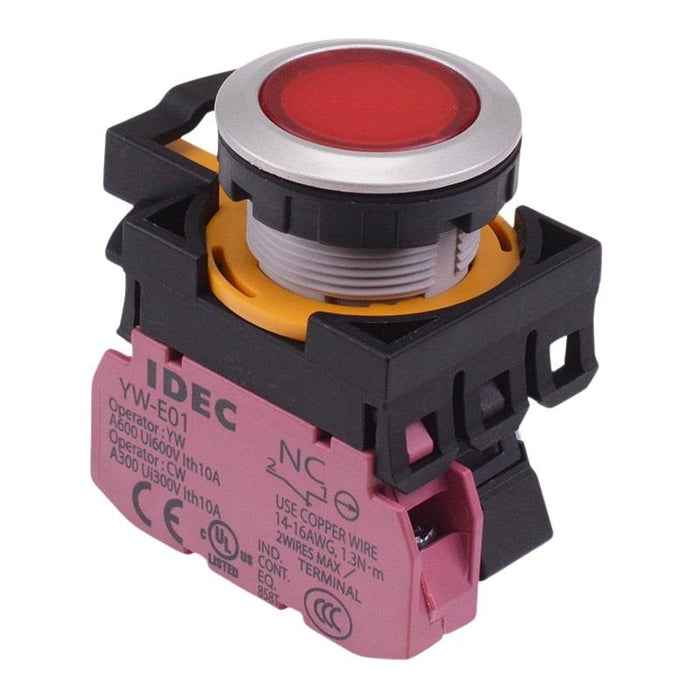

The CW4L-A1E10Q4R is a flush mount industrial push button switch featuring a sleek and compact metallic design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The metallic design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek metallic design makes the switch perfect for use with industrial machines and control panels.

  • Red button
  • 24V LED illumination
  • 1NO contacts
  • Screw contact blocks
  • Maintained operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • Specification
    Actuation Maintained
    Back order lead time 10 Days
    Colour Red
    Contact configuration 1NO
    Contact rating 8A 24VDC, 10A 120VAC, 6A 240VAC
    Current rating 10A
    Head type Flush
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 24V
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +55°C
    Panel cut out 22.3mm
    Product series CW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 300V
