CW1L-M1E11Q3PW White 12V illuminated Momentary Push Button Switch 1NO-1NC IP65 IDEC

SKU 933664


Only 4 left!
Original price £29.46 - Original price £29.46
Original price
£29.46 Inc VAT
£29.46 - £29.46
Current price £29.46 Inc VAT

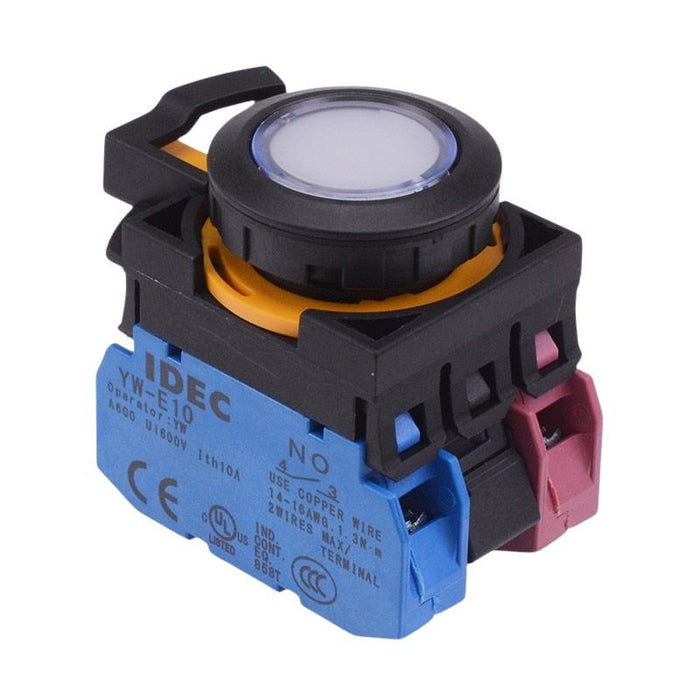

The CW1L-M1E11Q3PW is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

  • White button
  • 12V LED illumination
  • 1NO-1NC contacts
  • Screw contact blocks
  • Momentary operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour White
    Contact configuration 1NO-1NC
    Contact rating 8A 24VDC, 10A 120VAC, 6A 240VAC
    Current rating 10A
    Head type Flush
    Illuminated Yes
    Illumination colour White
    Illumination voltage 12V
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +55°C
    Panel cut out 22.3mm
    Product series CW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 300V
