IDEC CW Series Yellow Metallic Maintained Flush Push Button Switch 2NO IP65

by IDEC
SKU 934182

MPN: IDEC

Availability:
Only 4 left!
Original price £27.96 - Original price £27.96
Original price
£27.96 Inc VAT
£27.96 - £27.96
Current price £27.96 Inc VAT

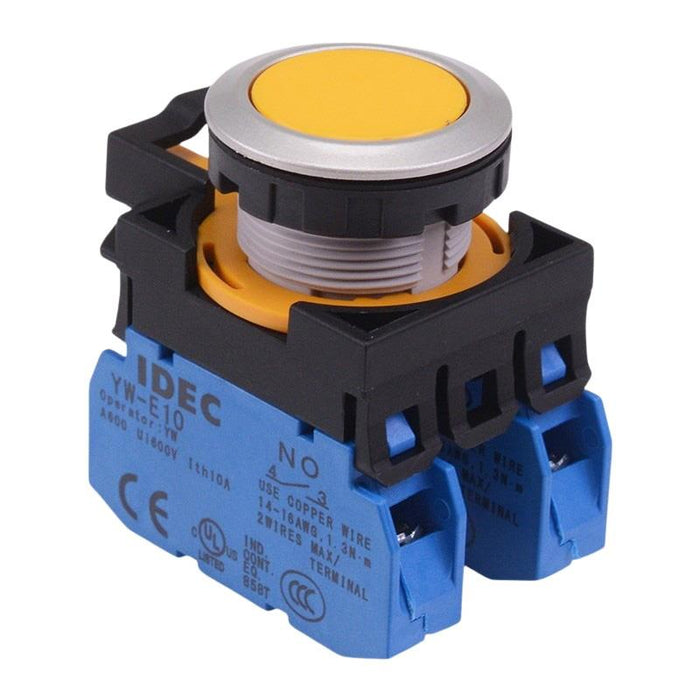

The CW4B-A1E20Y is a flush mount industrial push button switch featuring a metallic sleek and compact design with only 39.9mm behind the panel. The switch incorporates IDEC's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

  • Yellow button
  • 2NO contacts
  • Screw contact blocks
  • Maintained operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • Specification
    Actuation Maintained
    Colour Yellow
    Contact configuration 2NO
    Contact rating 8A 24VDC, 10A 120VAC, 6A 240VAC
    Current rating 10A
    Head type Flush
    Illuminated No
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +60°C
    Panel cut out 22.3mm
    Product series CW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 300V
