YW1L-A2E11Q3G Green 12V illuminated 22mm Maintained Push Button Switch 1NO-1NC IP65 IDEC

by IDEC
SKU 931604

MPN: YW1L-A2E11Q3G

Availability:
Out of stock
Sold out
Original price £20.67 - Original price £20.67
Original price
£20.67
£20.67 - £20.67
Current price £20.67

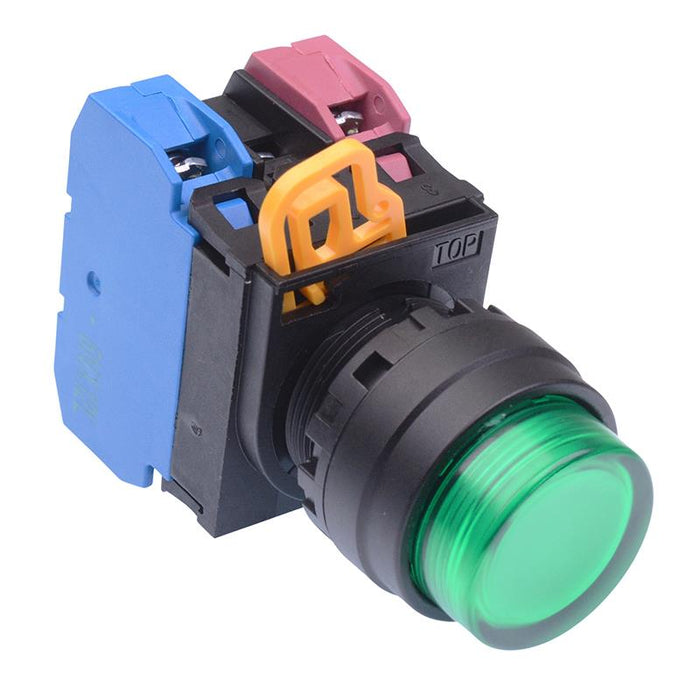

The YW1B-A2E11Q3G is an illuminated green maintained push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 1NO-1NC contacts
  • 12V illumination
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Maintained
    Back Order Lead Time 10 Days
    Colour Green
    Contact Configuration 1NO-1NC
    Contact Rating 2A 380V, 6A 240V
    Current Rating 10A
    Electrical Life 100,000 Cycles
    Head Type Extended
    Illuminated Yes
    Illumination Colour Green
    Illumination Voltage 12V
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -20°C to +55°C
    Panel Cut Out 22.3mm
    Panel Thickness 0.8-6mm
    Product Series YW
    Protection Level IP65
    Rated Thermal Current 10A
    Terminal Type Screw
    Voltage Rating 600V
