IDEC Green 12V illuminated 22mm Metal Bezel Maintained Push Button Switch NO IP65 YW4L-A2E10Q3G

by IDEC
SKU 932352

MPN: YW4L-A2E10Q3G

Availability:
29 in stock
Original price £20.71 - Original price £20.71
Original price
£20.71 Inc VAT
£20.71 - £20.71
Current price £20.71 Inc VAT

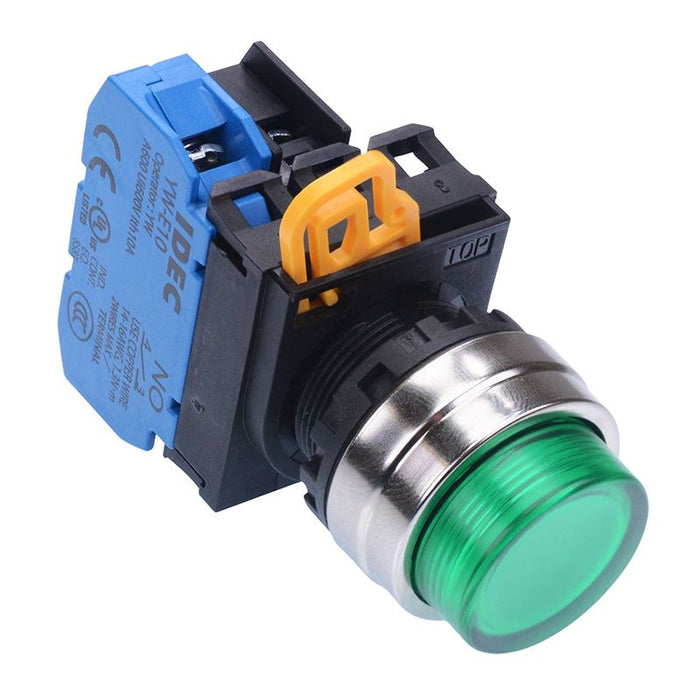

The YW4B-A2E10Q3G is an illuminated green maintained push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.

  • Metal Bezel
  • NO contacts
  • 12V illumination
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Maintained
    Back order lead time 10 Days
    Colour Green
    Contact configuration 1NO
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Extended
    Illuminated Yes
    Illumination colour Amber
    Illumination voltage 12V
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Terminal type Screw
    Voltage rating 600V
