IDEC Green 22mm Momentary Push Button Switch 1NO-2NC IP65 YW1B-M1E12G

by IDEC
SKU 931463

MPN: YW1B-M1E12G

Availability:
Out of stock
Sold out
Original price £14.44 - Original price £14.44
Original price
£14.44 Inc VAT
£14.44 - £14.44
Current price £14.44 Inc VAT

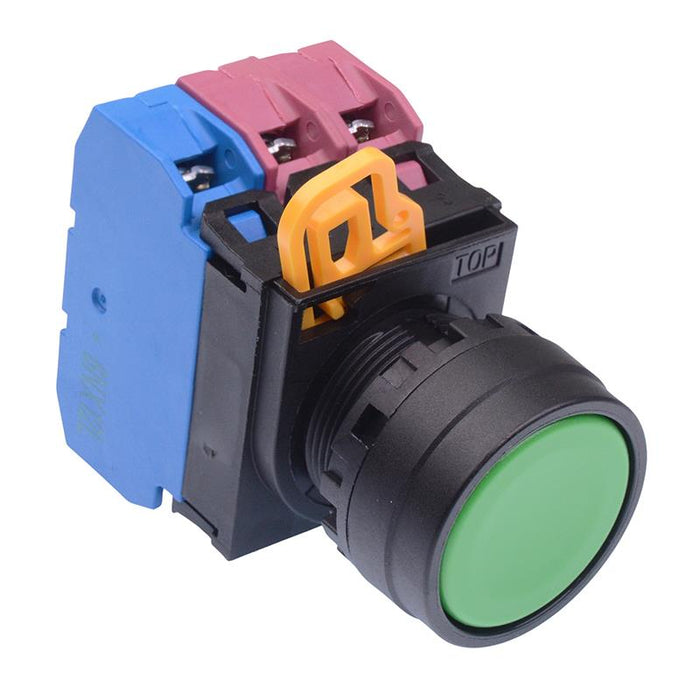

The YW1B-M1E12G is a green momentary push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 1NO-2NC contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Green
    Contact configuration 1NO-2NC
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Flush
    Illuminated No
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 600V
