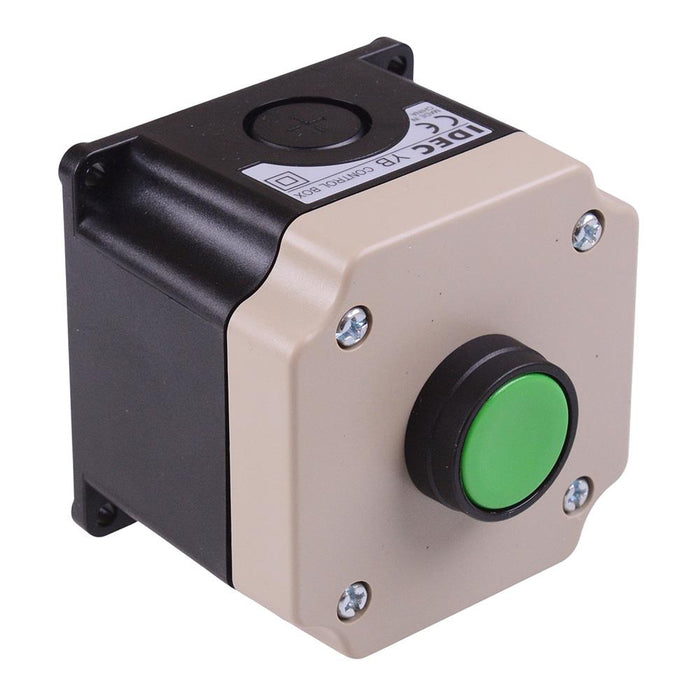

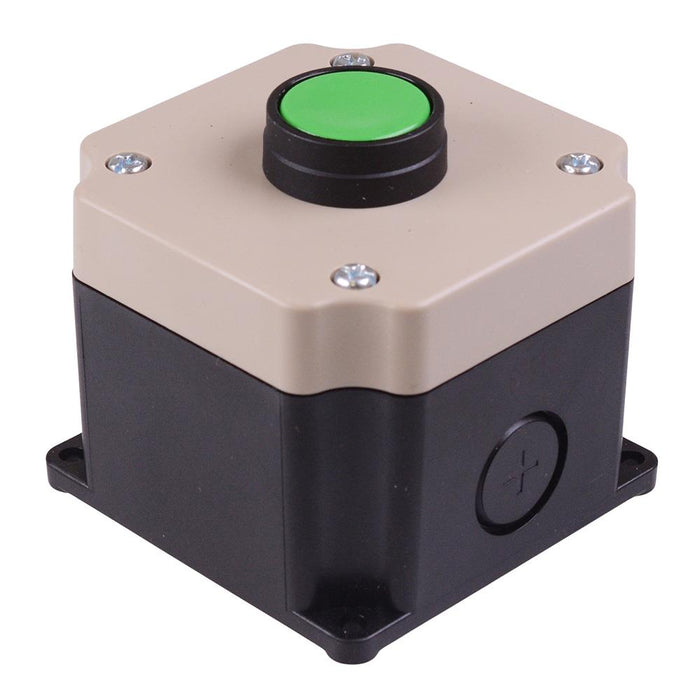

IDEC Green 22mm Momentary Push Button Switch Control Station 2NO IP65

Beige plastic control box featuring IP65 protection fitted with a green momentary push button switch from the YW series manufactured by IDEC. The switch and enclosure feature a heavy-duty rugged construction. The enclosure features 3*21.3mm diameter cable knockouts and mounting holes allowing it to be easily mounted to a panel.

2NO contacts

Voltage rating: 600V

Current rating: 10A

22mm panel cut-out

23.6mm button diameter

IP65 protection rating

Self cleaning contacts

Interchangeable switch components

Enclosure Dimensions: 76 x 76 x 59.5mm (length x width x height)
