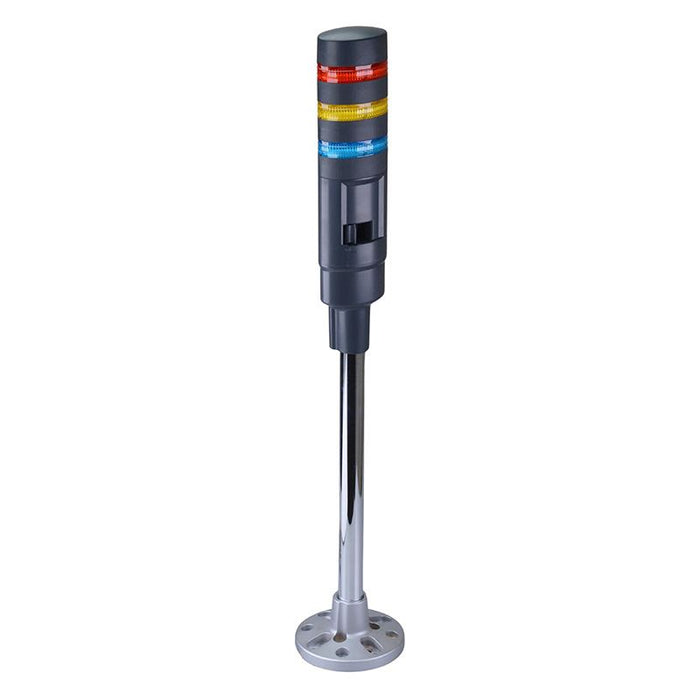

IDEC LD6A-3PZQB-RYS Red/Yellow/Blue Stack Light LED Tower with Sounder & Flasher Pole Mount 24VAC/DC

by IDEC
SKU 486348

MPN: LD6A-3PZQB-RYS

Availability:
Only 3 left!
Original price £212.25 - Original price £212.25
Original price
£212.25 Inc VAT
£212.25 - £212.25
Current price £212.25 Inc VAT
The LD6A-3PZQB-RYS is a flashing red / yellow / blue LED 3 tier stacklight tower manufactured by IDEC featuring a pole mount base and audible alarm.

The LD6A SignaLight combines the latest LED technology with IDEC's safety technology. Provides a new concept and innovative design, ideal for factory automation and various other applications. The striped design makes the SignaLight highly visible and is available as direct, frame, pole or wall mount.

The stack lights feature plug-in terminals allowing easy assembly and expansion with additional LED modules. Please note this stacklight comes with 3 tier screws, appropiate tier screws will be required for expansion.

  • Unique oval design for higher visibility
  • Easy installation and assembly
  • Flashing rate: 1.75Hz
  • Adjustable alarm volume: 70-90dB
  • 2 types of alarms: intermittent short beep and intermittent long beep
  • Protection level: IP54
  • Operating voltage: 24VAC/DC
  • LED life: 30,000 hours
  • Dimensions: 540 x 60 x 40mm (height x width x length)
  • Base diameter: 94mm
  • Specification
    Back order lead time 10 Days
    Bulb type LED
    Colour Red / Yellow / Blue
    Connection type Plug In
    Current consumption Red 25mA, Yellow 25mA, Blue 30mA
    Decibel level 70-90dB at 1 metre
    Flashing rate 1.75Hz
    Lens colour Red / Yellow / Blue
    Lens shape Oval
    Life expectancy 30,000 Hours
    Light effect Flashing
    Mounting type Pole Mount
    Number of tiers 3
    Operating temperature -25°C to +55°C
    Product series LD6A
    Protection level IP54
    Supply voltage 24V AC/DC
    Viewing angle 360°
    Wire length 650mm
