IDEC LD6A-5PZQB-RYSGWC Red/Yellow/Blue/Green/White Clear Lens Stack Light LED Tower with Sounder & Flasher Pole Mount 24VAC/DC
by IDEC
SKU 486417
MPN: LD6A-5PZQB-RYSGWC
Availability:
Out of stock
Sold out
Original price
£262.07
-
Original price
£262.07
Original price
£262.07
Inc VAT
£262.07
-
£262.07
Current price
£262.07
Inc VAT

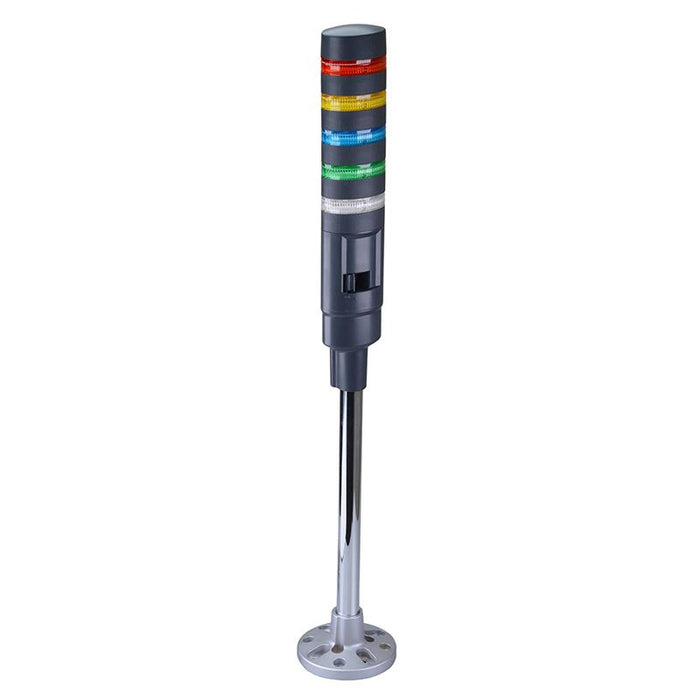

The LD6A-5PZQB-RYSGW is a flashing red / yellow / blue / green / white LED 5 tier stacklight tower with a clear lens, manufactured by IDEC featuring a pole mount base and audible alarm.
The LD6A SignaLight combines the latest LED technology with IDEC's safety technology. Provides a new concept and innovative design, ideal for factory automation and various other applications. The striped design makes the SignaLight highly visible and is available as direct, frame, pole or wall mount.
The stack lights feature plug-in terminals allowing easy assembly and expansion with additional LED modules. Please note this stacklight comes with 5 tier screws, appropiate tier screws will be required for expansion.
Unique oval design for higher visibility Easy installation and assembly Flashing rate: 1.75Hz Adjustable alarm volume: 70-90dB 2 types of alarms: intermittent short beep and intermittent long beep Protection level: IP54 Operating voltage: 24VAC/DC LED life: 30,000 hours Dimensions: 600 x 60 x 40mm (height x width x length) Base diameter: 94mm
The LD6A SignaLight combines the latest LED technology with IDEC's safety technology. Provides a new concept and innovative design, ideal for factory automation and various other applications. The striped design makes the SignaLight highly visible and is available as direct, frame, pole or wall mount.
The stack lights feature plug-in terminals allowing easy assembly and expansion with additional LED modules. Please note this stacklight comes with 5 tier screws, appropiate tier screws will be required for expansion.
Specification
| Back order lead time | 10 Days |
| Bulb type | LED |
| Colour | Red / Yellow / Blue / Green / White |
| Connection type | Plug In |
| Current consumption | Red 25mA, Yellow 25mA, Blue 30mA, Green 30mA, White 20mA |
| Decibel level | 70-90dB at 1 metre |
| Flashing rate | 1.75Hz |
| Lens colour | Clear |
| Lens shape | Oval |
| Life expectancy | 30,000 Hours |
| Light effect | Flashing |
| Mounting type | Pole Mount |
| Number of tiers | 5 |
| Operating temperature | -25°C to +55°C |
| Product series | LD6A |
| Protection level | IP54 |
| Supply voltage | 24V AC/DC |
| Viewing angle | 360° |
| Wire length | 650mm |
