IDEC LD6A Stack Light Base Direct Mount 24VAC/DC LD6A-0DQB

by IDEC
SKU 485740

MPN: LD6A-0DQB

Availability:
Only 5 left!
Original price £51.50 - Original price £51.50
Original price
£51.50 Inc VAT
£51.50 - £51.50
Current price £51.50 Inc VAT

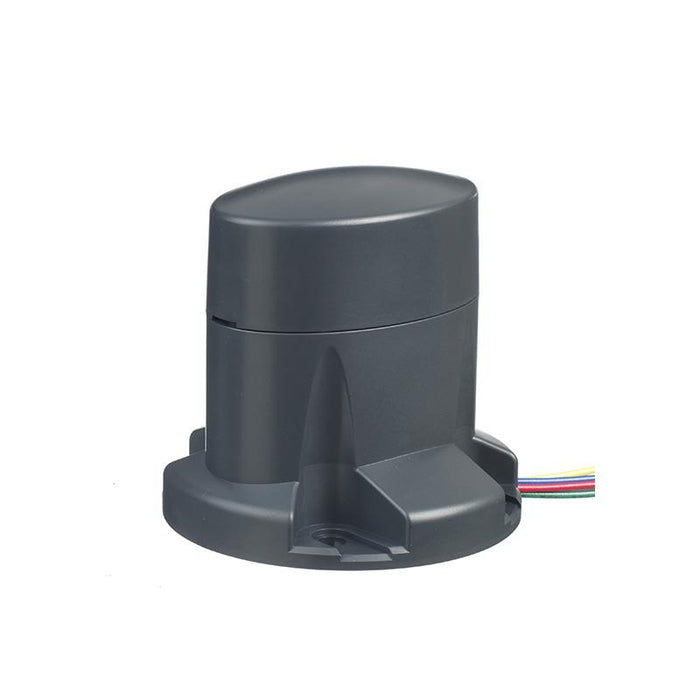

The LD6A-0DQB is a direct mount base for the LD6A LED SignaLight towers.

The LD6A SignaLight combines the latest LED technology with IDEC's safety technology. Provides a new concept and innovative design, ideal for factory automation and various other applications. The striped design makes the SignaLight highly visible and is available as direct, frame, pole or wall mount.

When ordering as sub-components a base module, LED modules and center set screw is required to make a complete unit.
Specification
Back order lead time 10 Days
Bulb type LED
Connection type Screw
Current consumption Red 25mA, Yellow 25mA, Blue 30mA
Lens shape Oval
Life expectancy 30,000 Hours
Light effect Steady
Mounting type Direct Mount
Number of tiers 5
Operating temperature -25°C to +55°C
Product series LD6A
Protection level IP65
Supply voltage 24V AC/DC
Wire length 1040mm
