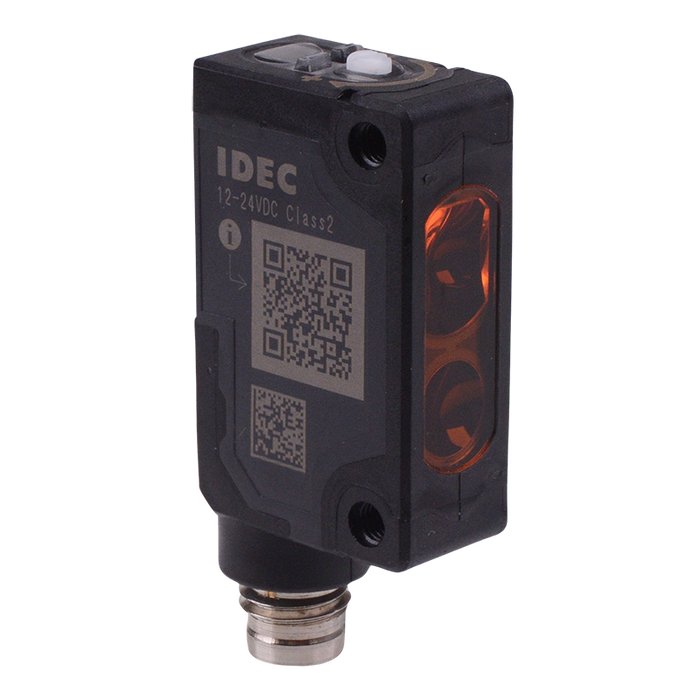

IDEC Mini Photoelectric Sensor Diffuse Reflective Red LED PNP SA2E-DP3MC
by IDEC
SKU 487112
MPN: SA2E-DP3MC
Availability:
Only 2 left!
Original price
£119.26
-
Original price
£119.26
Original price
£119.26
Inc VAT
£119.26
-
£119.26
Current price
£119.26
Inc VAT
The SA2E-DP3MC is a miniature high performance photoelectric sensor featuring diffuse reflective sensing and enhanced detection accuracy. The sensor features a 0.5ms response time, allowing continuous detection of small objects at high speeds. The sensor has a range up to 500mm, common applications include restroom sinks to detect the proximity of hands.
Sensing range: 500mm Power voltage: 12-24VDC (operating range: 10-30VDC) Light source element: red LED Detectable object: opaque/transparent Response time: 0.5ms Sensitivity adjustment: single turn control Operation mode: light ON / dark ON Control output: PNP open collector Current draw: 20mA maximum Protection level: IP67 Connection method: M8 4 pin connector Operating temperature: -30 to +55°C Dimensions: 10.8 x 19.5 x 31.5mm (width x depth x height)
Specification
| Back order lead time | 10 Days |
| Connection | M8 Connector (4-pin) |
| Control output | PNP |
| Current draw | 20mA Max |
| Depth | 19.5mm |
| Detectable object | Opaque/Transparent |
| Height | 31.5mm |
| Light source element | Red LED |
| Operating temperature | -30°C to +55°C |
| Operation mode | Light ON/Dark ON |
| Power voltage | 12 to 24VDC |
| Protection level | IP67 |
| Response time | 0.5ms |
| Sensing method | Diffuse-Reflective |
| Sensitivity adjustment | Single-Turn Control |
| Time delay function | Without |
| Width | 10.8mm |
