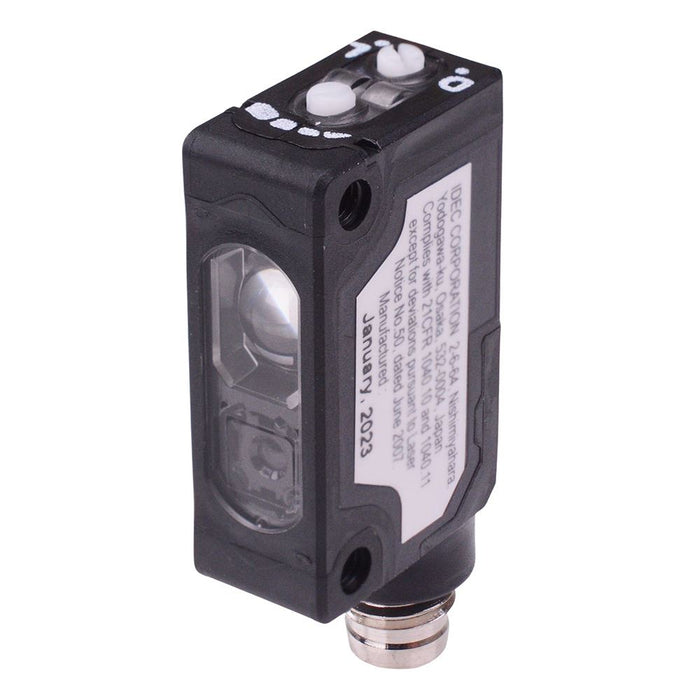

SA1E-LBP3C Mini Photoelectric Sensor Laser Background Suppression PNP IDEC

The SA1E-LBP3C is a miniature high performance photoelectric sensor featuring laser background suppression sensing and enhanced detection accuracy. The sensor features a 0.25ms response time, allowing continuous detection of closely spaced objects on a fast moving conveyor. The sensor features an easy-to-allign optical axis and visible red laser allowing the detecting position to be seen. Common applications include detecting narrow gaps between objects, dust or water vapour, small objects and detection from narrow locations.

Sensing range: 20mm to 300mm

Power voltage: 12-24VDC (operating range: 10-30VDC)

Light source element: red laser

Detectable object: 0.2mm diameter

Response time: 0.25ms

Sensing range adjustment: 6 turn endless control

Operation mode: light ON / dark ON

Control output: PNP open collector

Current draw: 35mA maximum

Protection level: IP67

Connection method: M8 4 pin connector

Operating temperature: -10 to +55°C

Dimensions: 10.8 x 19.5 x 31.5mm (width x depth x height)
