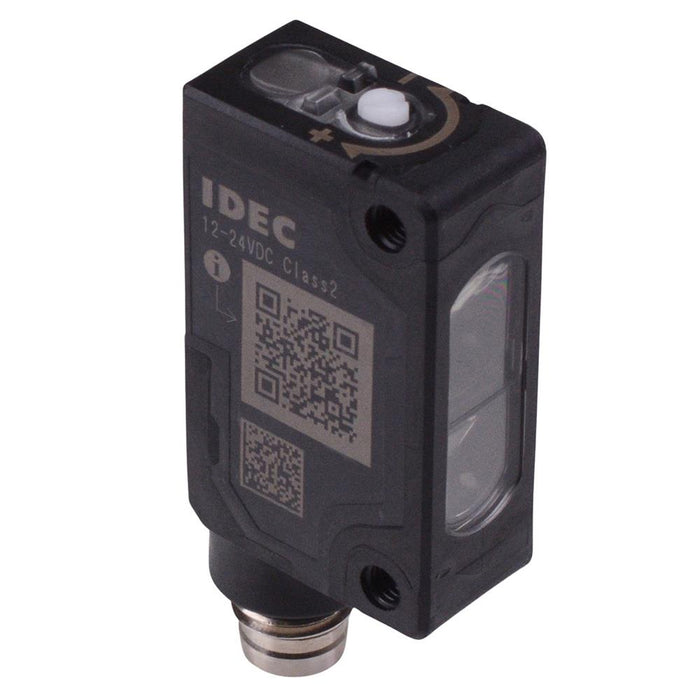

SA2E-PP3C Mini Photoelectric Sensor Polarized Retro-Reflective PNP IDEC
by IDEC
SKU 487111
MPN: SA2E-PP3C
Availability:
Only 2 left!
Original price
£42.56
-
Original price
£42.56
Original price
£42.56
£44.68
£44.68
-
£44.68
Current price
£44.68
The SA2E-PP3C is a miniature high performance photoelectric sensor featuring polarized retro-reflective sensing and enhanced detection accuracy. The sensor features a 0.5ms response time, allowing continuous detection of small objects at high speeds. The sensor has a range up to 5 meters, common applications include the detection of mirror surfaces on production lines.
Sensing range: 5m Power voltage: 12-24VDC (operating range: 10-30VDC) Light source element: red LED Detectable object: opaque Response time: 0.5ms Sensitivity adjustment: single turn control Operation mode: light ON / dark ON Control output: PNP open collector Current draw: 20mA maximum Protection level: IP67 Connection method: M8 4 pin connector Operating temperature: -30 to +55°C Dimensions: 10.8 x 19.5 x 31.5mm (width x depth x height)
Specification
| Back Order Lead Time | 10 Days |
| Connection | M8 Connector (4-pin) |
| Control Output | PNP |
| Current Draw | 20mA Max |
| Depth | 19.5mm |
| Detectable Object | Opaque |
| Height | 31.5mm |
| Light Source Element | Red LED |
| Operating Temperature | -30°C to +55°C |
| Operation Mode | Light ON/Dark ON |
| Power Voltage | 12 to 24VDC |
| Protection Level | IP67 |
| Response Time | 0.5ms |
| Sensing Method | Polarized Retro-Reflective |
| Sensitivity Adjustment | Single-Turn Control |
| Time Delay Function | Without |
| Width | 10.8mm |
