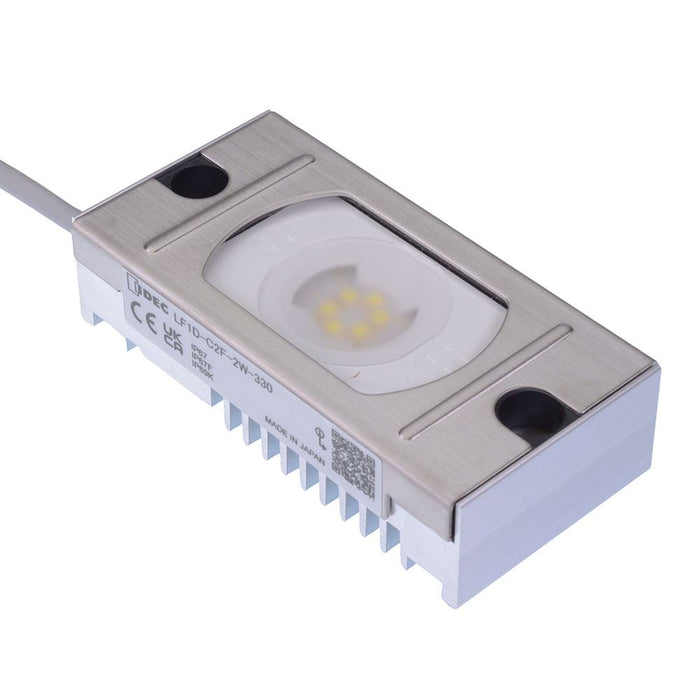

LF1D-C2F-2W-330 Mini Surface Mount Diffused LED Light Unit 24VDC IP69K IDEC

by IDEC
SKU 487108

MPN: LF1D-C2F-2W-330

Availability:
Only 1 left!
Original price £200.89 - Original price £200.89
Original price
£200.89
£200.89 - £200.89
Current price £200.89
The LF1D-C2F-2W-330 is a miniature surface mount LED light unit, offering superior performance and rugged design for use with machine tools. The unit provides uniform lighting and eliminates the multi-shadow effect which often occurs with inferior products. The light features anti glare mode to prevent operators from glare during maintenance and is easy to replace.

  • Reduces reflection from the light source
  • Robust material
  • Resistant to high temperature
  • Compact, slim, and light compared to conventional products
  • Side entry 3 meter cable
  • Rated voltage: 24V DC
  • Operating voltage range: 21.6 x 26.4V DC
  • Rated power: 4.6W
  • Colour temperature: 5700K
  • IP67G / IP69K protection rating
  • Luminous flux: 560 lm typical
  • Dimensions: 50 x 25 x 100mm
  • Specification
    Back Order Lead Time 10 Days
    Colour Daylight White
    Colour Temperature 5700K
    Height 25mm
    Length 100mm
    Lens Colour Diffused
    Luminous Flux 560lm Typical
    Mounting Style Surface
    Operating Temperature -30°C to +55°C
    Power Rating 4.6W
    Product Series LF1D
    Protection Level IP67G / IP69K
    Rated Voltage 24VDC
    Supply Voltage 21.6 - 26.4VDC
    Width 50mm
