YW1L-M2E20Q4R Red 24V illuminated 22mm Momentary Push Button Switch 2NO IP65 IDEC

by IDEC
SKU 931583

MPN: YW1L-M2E20Q4R

Availability:
19 in stock
Original price £19.10 - Original price £19.10
Original price
£19.10
£19.10 - £19.10
Current price £19.10

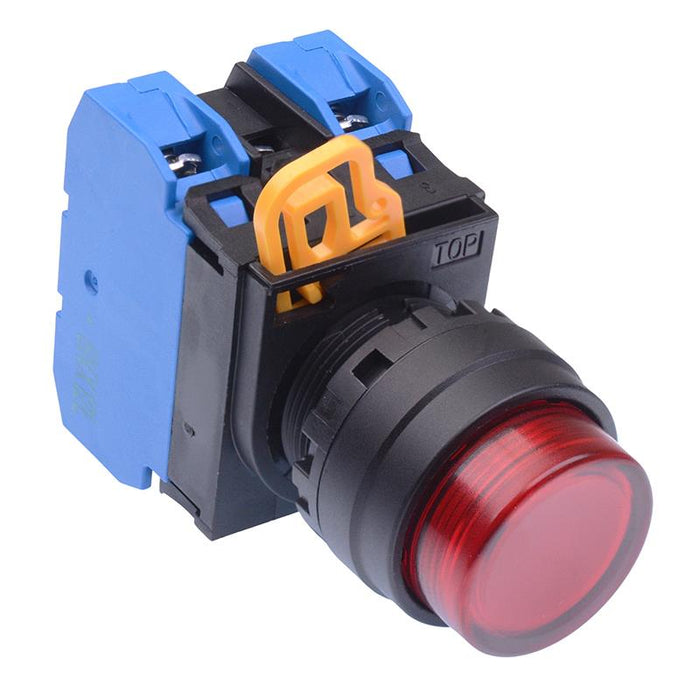

The YW1B-M2E20Q4R is an illuminated red momentary push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 2NO contacts
  • 24V illumination
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Red
    Contact Configuration 2NO
    Contact Rating 2A 380V, 6A 240V
    Current Rating 10A
    Electrical Life 100,000 Cycles
    Head Type Extended
    Illuminated Yes
    Illumination Colour Red
    Illumination Voltage 24V
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -20°C to +55°C
    Panel Cut Out 22.3mm
    Panel Thickness 0.8-6mm
    Product Series YW
    Protection Level IP65
    Rated Thermal Current 10A
    Terminal Type Screw
    Voltage Rating 600V
