IDEC Red 24V illuminated 22mm Momentary Shrouded Push Button Switch NC IP65 YW1L-MF2E01Q4R

SKU 931673


25 in stock
Original price £16.41 - Original price £16.41
Original price
£16.41 Inc VAT
£16.41 - £16.41
Current price £16.41 Inc VAT

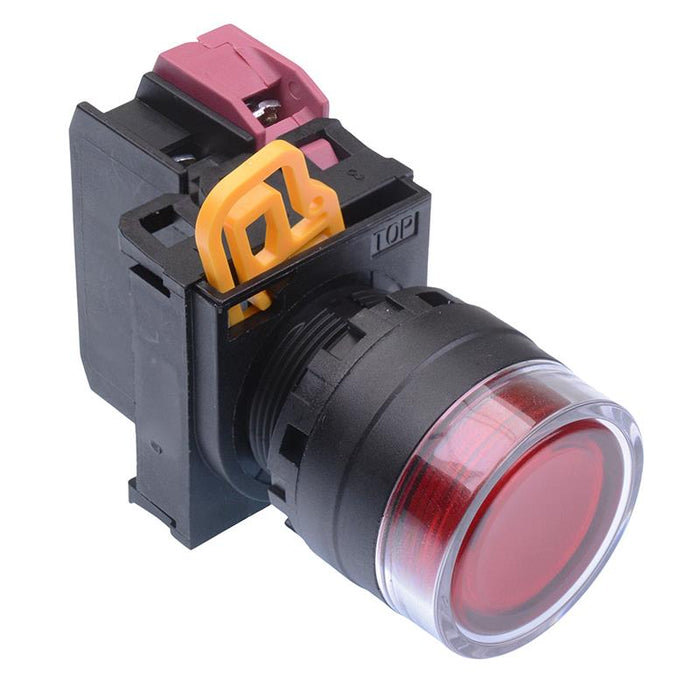

The YW1B-MF2E01Q4R is an illuminated red momentary shrouded push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • NC contacts
  • 24V illumination
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Red
    Contact configuration 1NC
    Contact rating 2A 380V, 6A 240V
    Current rating 10A
    Electrical life 100,000 Cycles
    Head type Extended with Shroud
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 24V
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 22.3mm
    Panel thickness 0.8-6mm
    Product series YW
    Protection level IP65
    Rated thermal current 10A
    Terminal type Screw
    Voltage rating 600V
