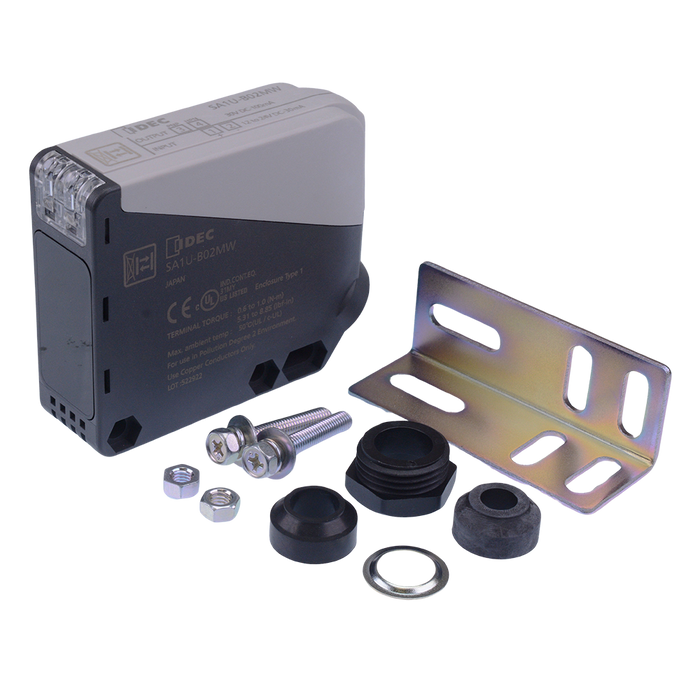

IDEC SA1U-B02MW Photoelectric Sensor Background Suppression Without Time Delay NPN / PNP

SKU 487114


Only 2 left!
Original price £109.57 - Original price £109.57
Original price
£109.57 Inc VAT
£109.57 - £109.57
Current price £109.57 Inc VAT
The SA1U-B02MW is a heavy duty photoelectric sensor switch featuring background suppression, capable of sensing opaque objects up to a 2 meter distance. The sensor features NPN and PNP open collector dual outputs and interference prevention allowing two units to be mounted in close proximity.

  • Sensing method: background suppression
  • Detectable object: opaque
  • Screw terminals for easy wiring
  • Sensing range: 0.2 to 2m
  • Response time: 1ms max
  • Power voltage: 12 to 24V DC
  • Control output: NPN and PNP open collector dual output
  • Operation mode: light ON or dark ON
  • Light emitting element: infrared LED 870nm
  • Sensitivity adjustment: 8 turn control knob
  • Time delay: without
  • Current draw: 30mA max
  • Protection level: IP67
  • Dimensions: 90 x 25 x 67.5mm (length x width x height)
  • Specification
    Back order lead time 10 Days
    Control output NPN / PNP Open Collector
    Current draw 30mA Max
    Depth 90mm
    Detectable object Opaque
    Height 67.5mm
    Light source element Infrared LED 870nm
    Operating temperature -25°C to +60°C
    Operation mode Light ON/Dark ON
    Power voltage 12 to 24VDC
    Protection level IP67
    Response time 20ms Max
    Sensing method Background Suppression
    Sensitivity adjustment 1-Turn Control Knob
    Time delay function Without
    Width 25mm
