IDEC SA1U-P07M Photoelectric Polarized Retroreflective Without Time Delay SPDT
by IDEC
SKU 487116
MPN: SA1U-P07M
Availability:
Only 2 left!
Original price
£94.75
-
Original price
£94.75
Original price
£94.75
Inc VAT
£94.75
-
£94.75
Current price
£94.75
Inc VAT

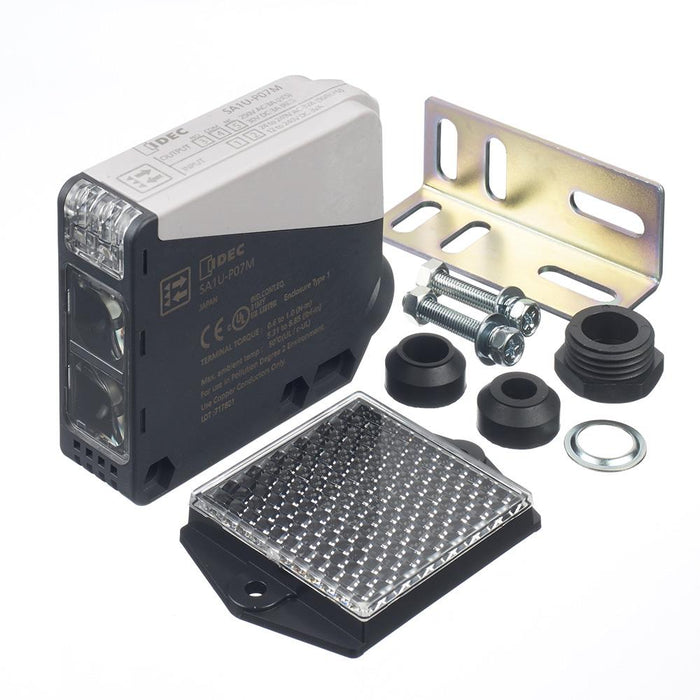

The SA1U-P07M is a heavy duty photoelectric sensor switch featuring polarized retroreflective sensing, capable of sensing opaque and mirror surface objects up to a 7 meter distance. The sensor features SPDT relay contact outputs and is suitable for both AC and DC applications.
Sensing method: polarized retroreflective Detectable object: opaque and mirror surface Screw terminals for easy wiring Sensing range: 0.2 to 7m Response time: 20ms max Power voltage: 24 to 240VAC, 12 to 240VDC Control output: SPDT relay contact, switching capacity: 250VAC / 30VDC 3A (resitive load) Minimum applicable load: 5VDC 10mA Operation mode: light ON or dark ON Light emitting element: red LED 660nm Sensitivity adjustment: 1 turn control knob Time delay: without Power consumption: 3VA max Protection level: IP67 Dimensions: 90 x 25 x 67.5mm (length x width x height)
Specification
| Back order lead time | 10 Days |
| Control output | Relay Contact SPDT |
| Current draw | 30mA Max |
| Depth | 90mm |
| Detectable object | Opaque/Mirror Surface |
| Height | 67.5mm |
| Light source element | Red LED 660nm |
| Operating temperature | -25°C to +60°C |
| Operation mode | Light ON/Dark ON |
| Power voltage | 12 to 24VDC |
| Protection level | IP67 |
| Response time | 20ms Max |
| Sensing method | Polarized Retro-Reflective |
| Sensitivity adjustment | 1-Turn Control Knob |
| Time delay function | Without |
| Width | 25mm |
