IDEC Surface Mount Diffused LED Machine Light Unit 24VDC IP69K LF3D-SB1S05M

SKU 487106


Only 2 left!
Original price £274.44 - Original price £274.44
Original price
£274.44 Inc VAT
£274.44 - £274.44
Current price £274.44 Inc VAT

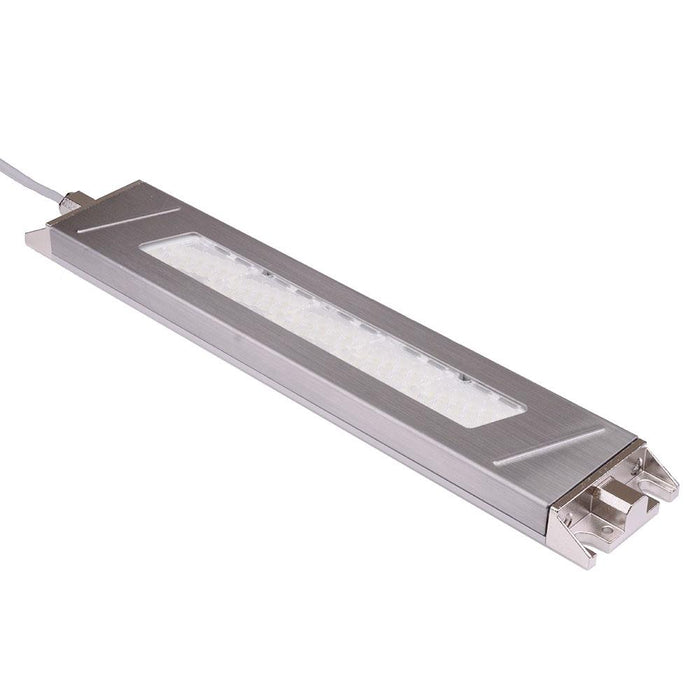

The LF3D-SB1S05M is a surface mount diffused LED light unit, offering superior performance and rugged design for use with machine tools. The unit provides uniform lighting and eliminates the multi-shadow effect which often occurs with inferior products. The light features anti glare mode to prevent operators from glare during maintenance and is easy to replace.

  • Diffused light
  • Reduces reflection from the light source
  • Robust material
  • Resistant to high temperature
  • Compact, slim, and light compared to conventional products
  • 5 meter cable
  • Rated voltage: 24V DC
  • Operating voltage range: 21.6 x 26.4V DC
  • Rated power: 9.2W
  • Colour temperature: 5700K
  • IP67G / IP69K protection rating
  • Luminous flux: 1700 lm typical
  • Dimensions: 80 x 27 x 307mm
  • Specification
    Back order lead time 10 Days
    Colour Daylight White
    Colour temperature 5700K
    Height 27mm
    Length 307mm
    Lens colour Diffused
    Luminous flux 1700lm Typical
    Mounting style Surface
    Operating temperature -30°C to +55°C
    Power rating 9.2W
    Product series LF3D
    Protection level IP67G / IP69K
    Rated voltage 24VDC
    Supply voltage 21.6 - 26.4VDC
    Width 80mm
