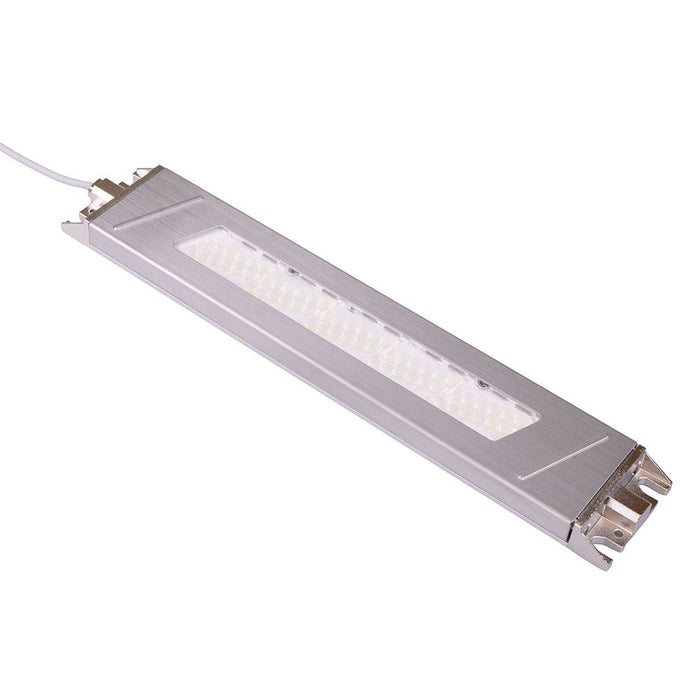

LF3D-SB2S05M Surface Mount LED Machine Light Unit 24VDC IP69K IDEC
by IDEC
SKU 487107
MPN: LF3D-SB2S05M
Availability:
Only 1 left!
Original price
£274.44
-
Original price
£274.44
Original price
£274.44
£274.44
-
£274.44
Current price
£274.44
The LF3D-SB2S05M is a surface mount LED light unit, offering superior performance and rugged design for use with machine tools. The unit provides uniform lighting and eliminates the multi-shadow effect which often occurs with inferior products. The light features anti glare mode to prevent operators from glare during maintenance and is easy to replace.
Reduces reflection from the light source Robust material Resistant to high temperature Compact, slim, and light compared to conventional products 5 meter cable Rated voltage: 24V DC Operating voltage range: 21.6 x 26.4V DC Rated power: 9.2W Colour temperature: 5700K IP67G / IP69K protection rating Luminous flux: 1700 lm typical Dimensions: 80 x 27 x 307mm
Specification
| Back Order Lead Time | 10 Days |
| Colour | Daylight White |
| Colour Temperature | 5700K |
| Height | 27mm |
| Length | 307mm |
| Lens Colour | Clear |
| Luminous Flux | 1700lm Typical |
| Mounting Style | Surface |
| Operating Temperature | -30°C to +55°C |
| Power Rating | 9.2W |
| Product Series | LF3D |
| Protection Level | IP67G / IP69K |
| Rated Voltage | 24VDC |
| Supply Voltage | 21.6 - 26.4VDC |
| Width | 80mm |
