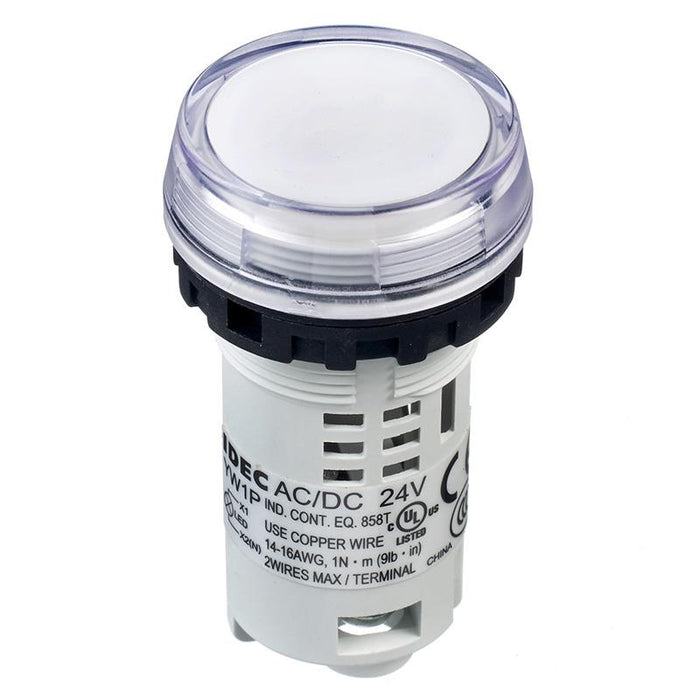

IDEC White 24V LED Panel Mount Indicator YW1P-1BUQ4PW
by IDEC
SKU 485701
MPN: YW1P-1BUQ4PW
Availability:
9 in stock
Original price
£6.96
-
Original price
£6.96
Original price
£6.96
Inc VAT
£6.96
-
£6.96
Current price
£6.96
Inc VAT
The YW1P-1BUQ4PW is a unibody white 24V LED panel mount indicator from the YW range by IDEC. The indicator features a flush head and IP65 protection level, suitable for use in harsh wearing industrial applications. The innovative unibody design eliminates the need for additional contact blocks or light modules.
LED Lamp Screw terminals Voltage: 24V AC/DC Panel cut-out diameter: 22mm Forward current: 20mA Panel thickness: 0.8-6mm Dimensions: 52 x 29.8mm (height x diameter)
Specification
| Back order lead time | 10 Days |
| Colour | White |
| Diameter | 29.8mm |
| Forward current | 20mA |
| Lamp type | LED |
| Length | 52mm |
| Mounting type | Panel Mount |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 22mm |
| Panel thickness | 6mm |
| Protection level | IP65 |
| Voltage rating | 24VAC/DC |
