IDEC XA-16mm Emergency Stop Switch 29mm Mushroom 1NO-3NC XA1E-BV313R
by IDEC
SKU 485714
MPN: XA1E-BV313R
Availability:
12 in stock
Original price
£35.98
-
Original price
£35.98
Original price
£35.98
Inc VAT
£35.98
-
£35.98
Current price
£35.98
Inc VAT

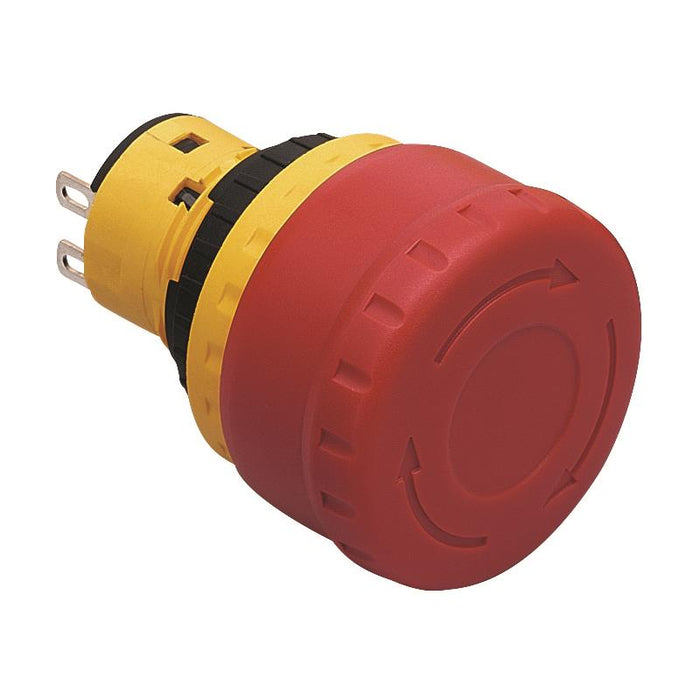

The XA1E-BV313R is a 16mm E-stop switch manufactured by IDEC, featuring a 29mm mushroom head and 1NO-3NC contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.

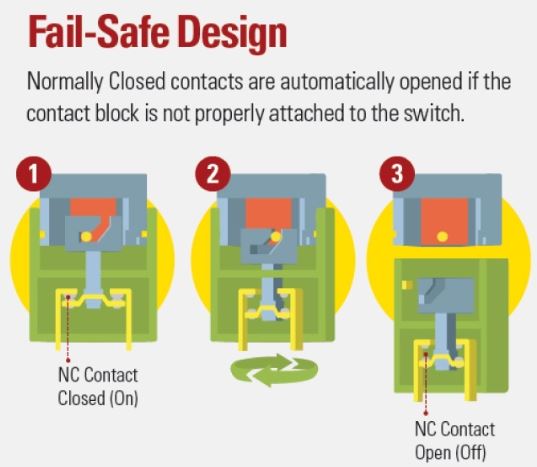

IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
1NO-3NC contacts 16mm panel hole diameter IP65 protection level Screw terminals 29mm mushroom head 5A 300VAC rating RU, TUV, CE, CCC certification
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
Specification
| Actuation | Twist Release |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | 1NO-3NC |
| Contact rating | 5A 300VAC |
| Current rating | 5A |
| Illuminated | No |
| Mounting style | Panel |
| Number of positions | 2 |
| Panel cut out | 16mm |
| Product series | XA |
| Protection level | IP65 |
| Terminal type | Screw |
| Voltage rating | 300V |
