IDEC XW-22mm Emergency Stop Switch 40mm Mushroom 1NO-3NC XW1E-BV413MFR
by IDEC
SKU 485713
MPN: XW1E-BV413MFR
Availability:
11 in stock
Original price
£38.39
-
Original price
£38.39
Original price
£38.39
Inc VAT
£38.39
-
£38.39
Current price
£38.39
Inc VAT

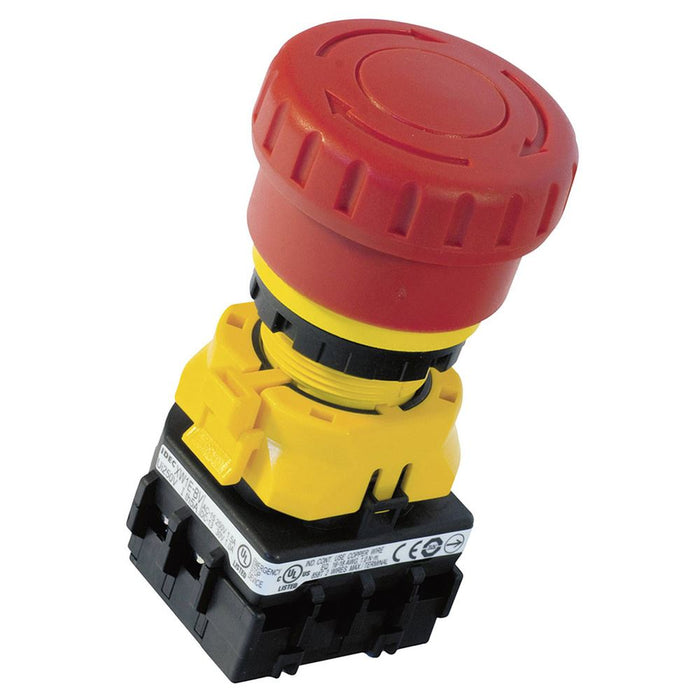

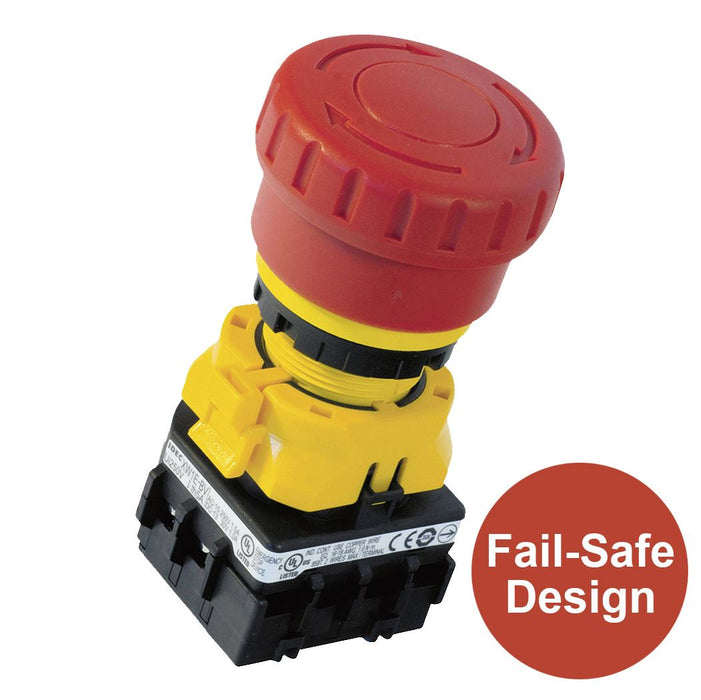

The XW1E-BV413MFR is a 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 1NO-3NC contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.

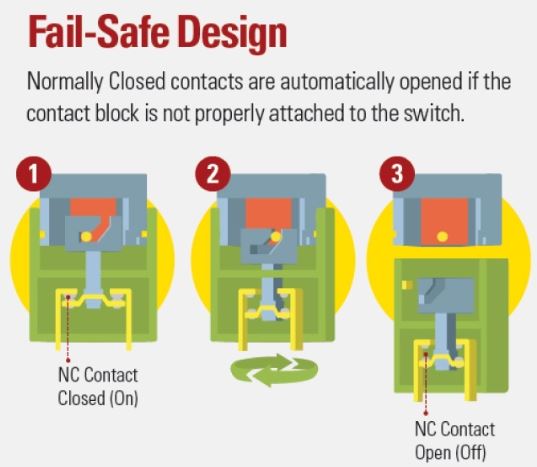

IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
1NO-3NC contacts 22mm panel hole diameter IP65 protection level Screw terminals 40mm mushroom head 5A 250VAC rating UL, c-UL listed, EN compliant
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
Specification
| Actuation | Twist Release |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | 1NO-3NC |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Illuminated | No |
| Mounting style | Panel |
| Number of positions | 2 |
| Panel cut out | 22.3mm |
| Product series | XW |
| Protection level | IP65 |
| Terminal type | Screw |
| Voltage rating | 250VAC |
