C13 IEC Right Angle Rewireable Straight Cable Socket 10A
SKU 356070
MPN: SE-AS-204
Availability:
140 in stock
Original price
£3.37
-
Original price
£3.37
Original price
£3.37
£3.54
£3.54
-
£3.54
Current price
£3.54

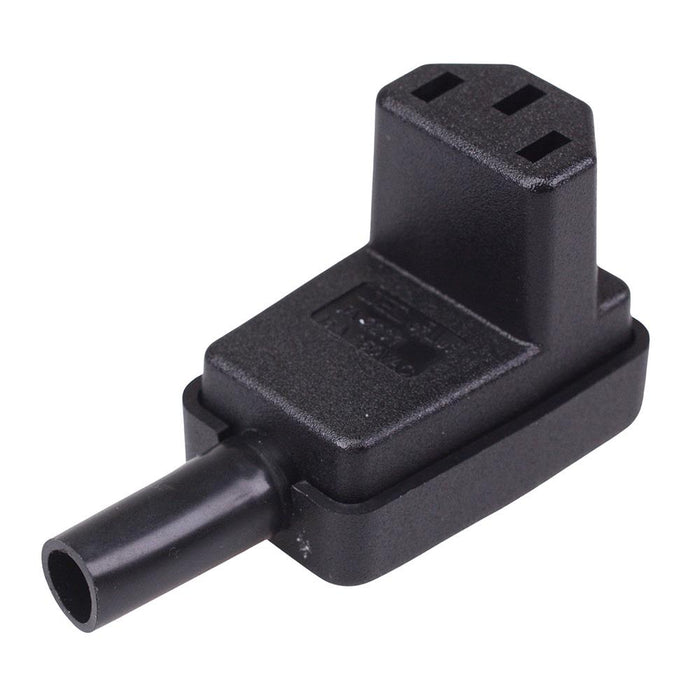

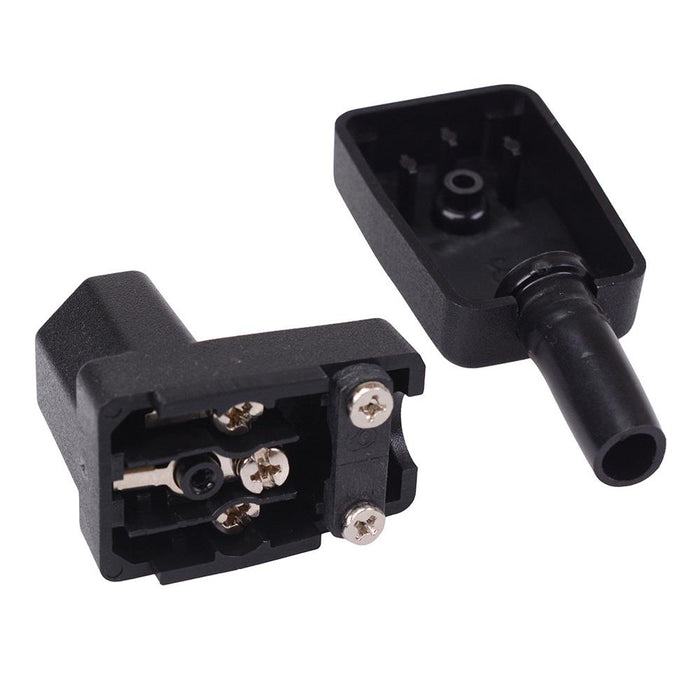

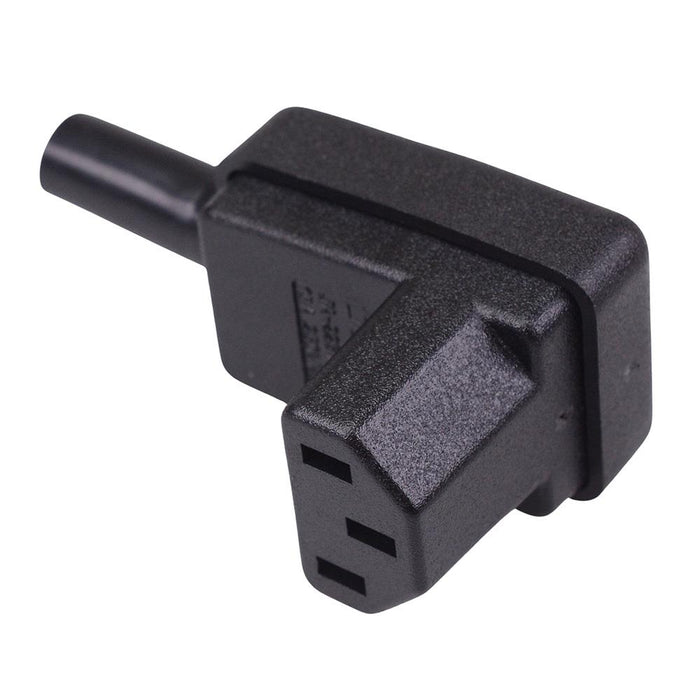

Right angle rewireable C13 power connector featuring screw terminals to terminal the cable and 10A 250VAC rating. The socket is suitable for mating with C14 connectors in a wide range of AC power applications.
Rating: 10A 250VAC Termination: screw terminals Dimensions: 65.0 x 28.6 x 36.7mm (length x width x height) Maximum cable diameter: 7mm
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Current Rating | 10A |
| Housing Material | PBT |
| Mounting Type | Wire |
| Operating Temperature | -45°C to +105°C |
| Termination Method | Screw |
| Type | C13 |
| Voltage Rating | 250VAC |
