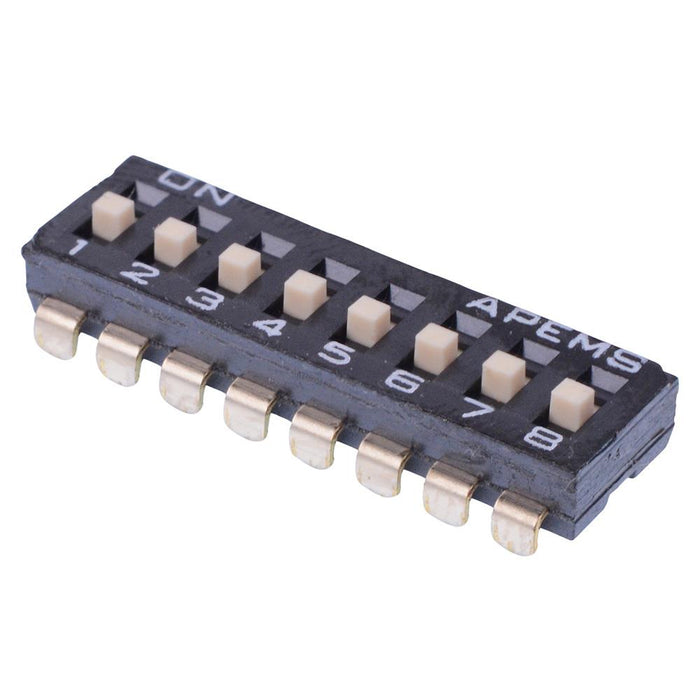

IKD0805101 APEM 8-Way 2.54mm Surface Mount PCB DIP Switch SPST
by APEM
SKU 487821
MPN: IKD0805101
Availability:
305 in stock
Original price
£0.74
-
Original price
£0.74
Original price
£0.74
£0.84
£0.84
-
£0.84
Current price
£0.84
The IKD0805101 is a 8 way DIP switch featuring SPST contacts and gold plated terminals. The switch features 3mm height from the PCB and 25mA 24VDC switch rating, suitable for surface mount PCB applications.
8 ways Switch rating: 25mA 24VDC Contact rating: 100mA 50VDC Gold plated J bend terminals 2.54mm pitch Tape seal
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated |
| Contact Rating | 100mA 50VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Cycles |
| Material | UL94-V0 |
| Mounting Style | Surface Mount |
| Number of Positions | 2 |
| Number of Ways | 8 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 2.54mm |
| Product Series | IKD |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
