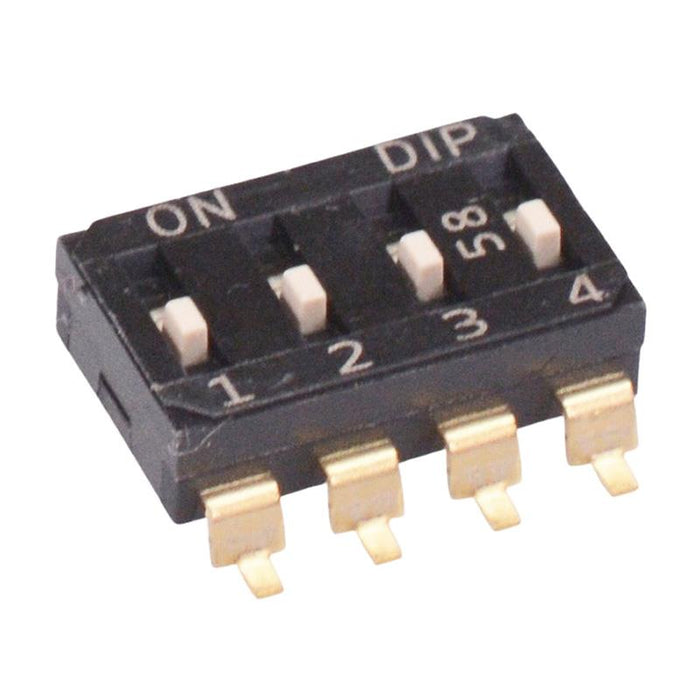

IKE0403101 4-Way Surface Mount 2.54mm DIP Switch SPST APEM
by APEM
SKU 492506
MPN: IKE0403101
Availability:
752 in stock
Original price
£0.71
-
Original price
£0.71
Original price
£0.71
£0.71
-
£0.71
Current price
£0.71
The IKE0403101 is a 4 way surface mount DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for surface mount PCB applications.
- Recessed actuator
- 4 ways
- Switch rating: 25mA 24VDC
- Gold plated terminals
- 2.54mm pitch
- Wave solderable
- End stackable
- Self-cleaning wiping contacts
- Overall height from PCB 3.4mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Copper |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 2,000 Operations |
| MOQ | 1 |
| Mounting Style | Surface Mount |
| Number of Positions | 2 |
| Number of Ways | 4 |
| Operating Temperature | -20°C to +85°C |
| Pitch | 2.54mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
