ILLUMEC 11 Blue illuminated Tactile Switch Kit Module IP67 MEC
by MEC
SKU 492509
MPN: ILLUMEC 11
Availability:
10 in stock
Original price
£53.68
-
Original price
£53.68
Original price
£53.68
£53.68
-
£53.68
Current price
£53.68

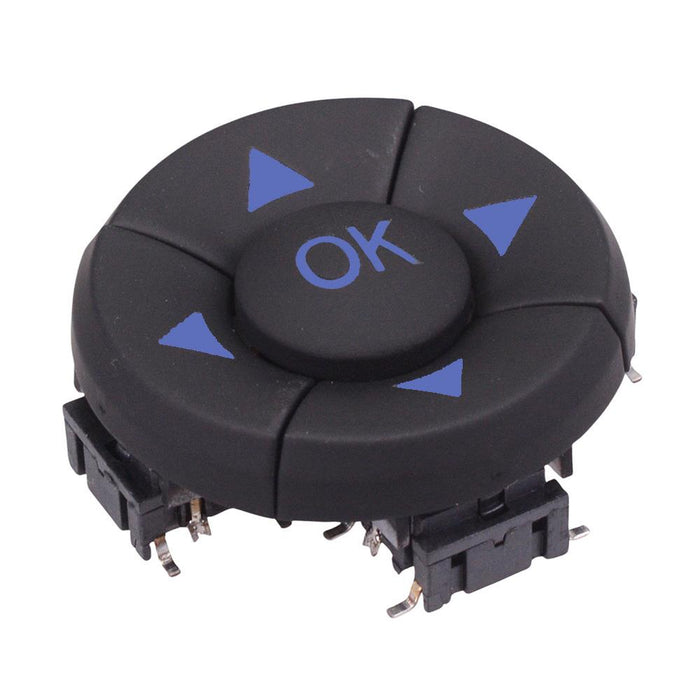

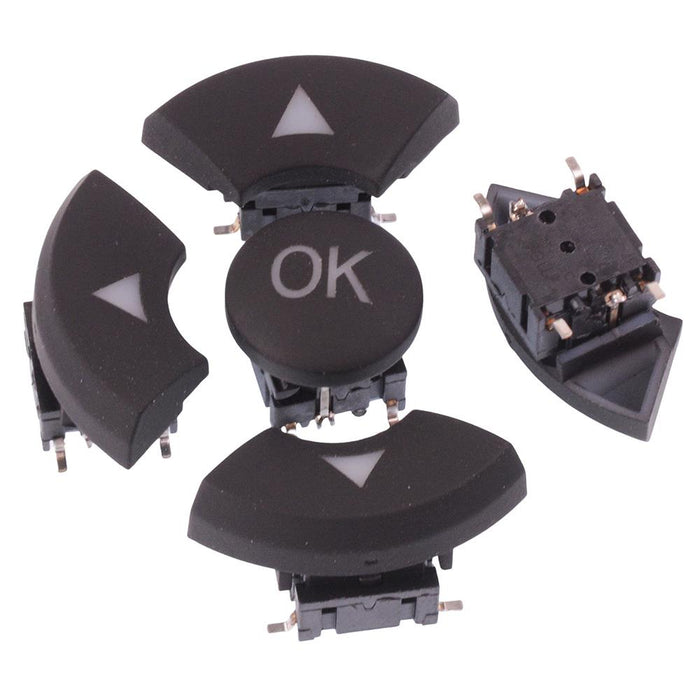

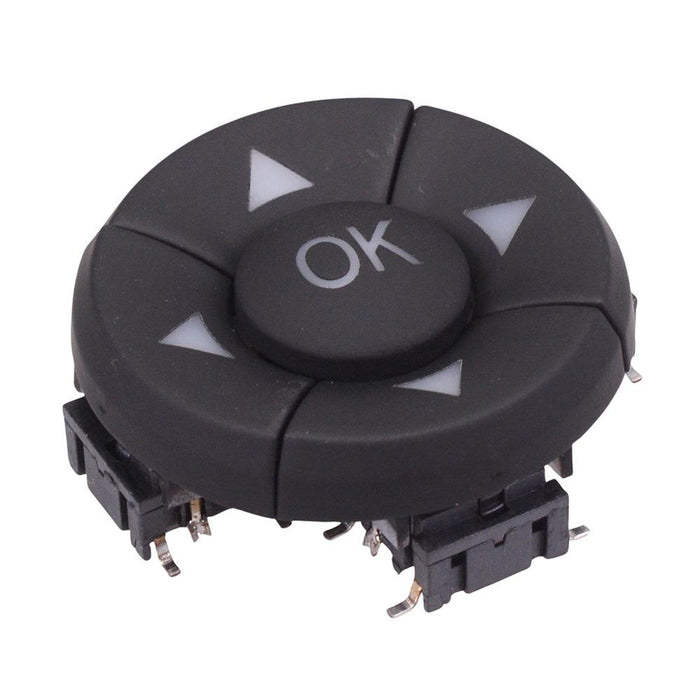

The ILLUMEC 11 is a five switch blue illuminated Navimec module suitable for data entry devices where joystick function is needed. The module has a central select switch and four navigational switches around it. The module is constructed from the Multimec 5G series and suitable for surface mounting.
Blue illumination LED voltage: 2.7V IP67 sealing Rating: 50mA 24VDC Panel cut-out: 35.0-35.5mm Diameter: 34.25mm Height: 12.2mm Actuation force: 3.5N (100N max)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Blue |
| Contact Rating | 50mA 24VDC |
| Current Rating | 50mA |
| Height | 12.2mm |
| Illumination Colour | Blue |
| Illumination Voltage | 2.7V |
| MOQ | 1 |
| Mounting Style | PCB |
| Operating Force | 3.5N |
| Operating Temperature | -30°C to +85°C |
| Product Series | Navimec |
| Protection Level | IP67 |
| Terminal Type | Surface Mount |
| Voltage Rating | 24VDC |
