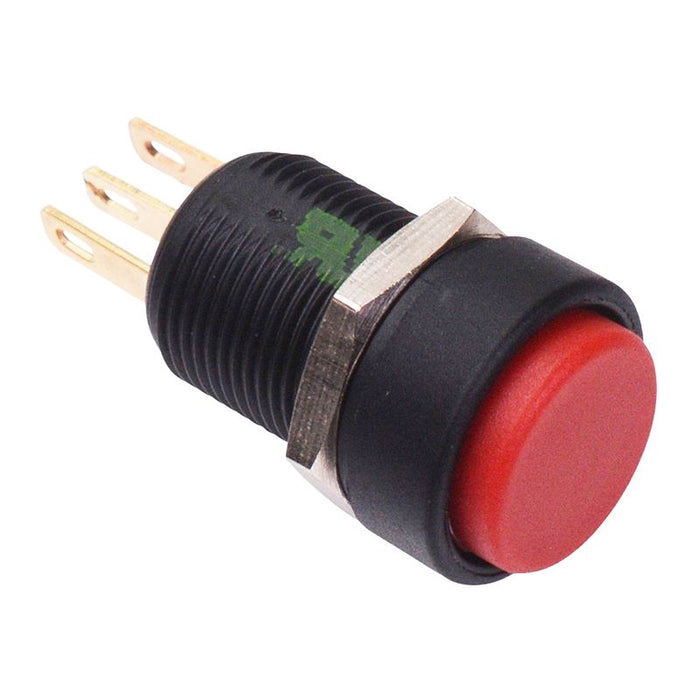

IMP7Z462234UL APEM Red Momentary 12mm Push Button Switch SPDT IP67
by APEM
SKU 486009
MPN: IMP7Z462234UL
Availability:
7 in stock
Original price
£15.83
-
Original price
£15.83
Original price
£15.83
Inc VAT
£15.83
-
£15.83
Current price
£15.83
Inc VAT
The IMP7Z462234UL is a red momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features solder lug terminals and SPDT contacts, suitable for a wide range of applications.
Momentary operation Snap action: tactile feedback with audible click SPDT NO/NC contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 3A 28VDC Panel thickness: 1.5-10mm Back of panel space requirement: 20mm minimum Dimensions: 25.1 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | SPDT |
| Contact rating | 3A 28VDC |
| Current rating | 3A |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 13.6mm |
| Panel thickness | 1.5-10mm |
| Product series | IM |
| Protection level | IP67 |
| Terminal type | Quick Connect |
| Voltage rating | 28VDC |
